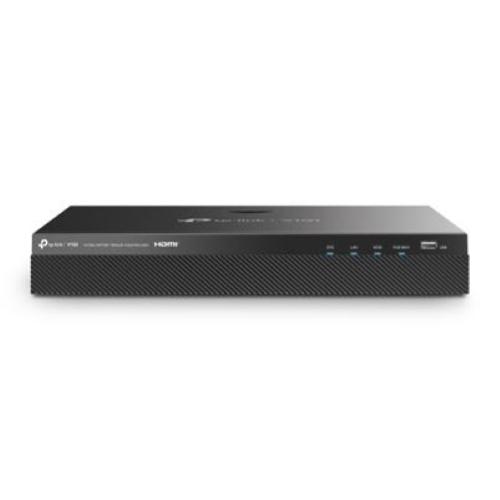

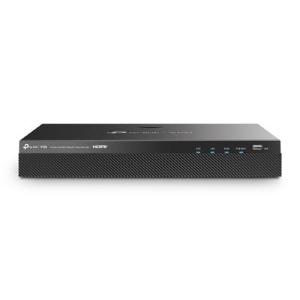

NVR IP PoE+ TP-LINK VIGI NVR2016H-16MP 16canali -usc.video HDMI 4K-risol. fino 16MP 2 interf.HDD fino 16TB cad.-Supp. PoE+

Video and Audio
IP Video Input: 16-Channel
Incoming Bandwidth: 320 Mbps
Outgoing Bandwidth: 320 Mbps
HDMI Output Resolution: 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode: HDMI and VGA Independent / Simultaneous Output
Multi-View Display: 1/4/6/8/9/16

DECODING
Audio Compression: G.711A/G.711U/G.726
Video Compression: H.265+/H.265/H.264+/H.264
Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 16-Channel
Capability:
25fps:
- 10-ch @ 3MP, 16-ch @ 1080P
30fps:
- 4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP

Record Management
Record Mode:
- Manual Recording
- Scheduling Recording
- Motion Detection Recording
Playback Mode:
- Instant Playback
- Regular Playback
- Tag Playback
- Event Playback
Backup Mode:
- Regular Backup
- Video Clip Backup
Playback Function:
- Play
- Pause
- Stop
- Fast Forward
- Fast Backward
- Play By Frame
- Full Screen
- Video Clip
- Export Clip
- Digital Zoom
- Lock Recording
- Audio On/Off

NETWORK
Protocol: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, FTP/SFTP, IPv6, SNMP
Mobile Phone Access: Android, iOS
Web Browser: Chrome (57+), Firefox (52+), Edge (91+), Safari (11+)
Interoperability: ONVIF Profile S, CGI

External Interface
Network Interface: 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface: 1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface: 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out: 6/4
Serial Interface: N/A
Power: 1× DC Jack
Reset Button: 1
Speaker: N/A
eSATA: 1
HDMI: 1
VGA: 1

HARD DISK
SATA: 2 SATA Interfaces
Capacity: Up to 16 TB Capacity for Each HDD

PoE
Standard: 802.3at/af Compliant
Interface: 1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget: 140 W Available for All PoE+ Ports, 30 W Max per Port

Alarm
General Alarm:
- Motion Detection
- Video Tampering
- Scene Change Detection
- Line-Crossing Detection
- Intrusion Detection
- Region Entering Detection
- Region Exiting Detection
- Loitering Detection
- Object Abandoned/Removal Detection
- Vehicle Detection
- Human Detection
- Abnormal Sound Detection
- Smart Frame
Anomaly Alarm:
- Video Loss
- Offline and IP Conflict
- Disk Exception
- Login Exception
- Fan Exception
Alarm Linkage:
- Recording
- White Light Alarm
- Buzzer
- Log
- Audible Alarm

GENERALE
Storage Temperature: -40 ℃ to 70 °C (-40 ℉ to 158 ℉)
Storage Humidity: 10%~90% RH Non-Condensing
Contenuto della confezione:
- VIGI Network Video Recorder
- Power Adapter
- Terminal Blocks
- HDD Power Cables
- HDD Data Cables
- Mounting Brackets
- Screws
- Rubber Feet
-Mouse
-Quick Installation Guide
Working Temperature:
- NVR: -10 ℃ to 55 °C (14 ℉ to 131 ℉)
- Power Adapter: 0 ℃ to 40 °C (32 ℉ to 104 ℉)
Working Humidity: 10%~90% RH Non-Condensing
Dimensioni ( L x P x A ): 13.0 × 11.2 × 1.8 in (330 × 285 × 45 mm)
Net Weight: 2.2 Kg
Gross Weight: 4.2 Kg
Power Supply: 53.5V DC/3.37A
Max. Power Consumption:
- 6.2 W (Without Disk)
- 40 W (With Disk)
Certifications: CE, NTRA, BSMI, VCCI, FCC, HDMI, ONVIF
