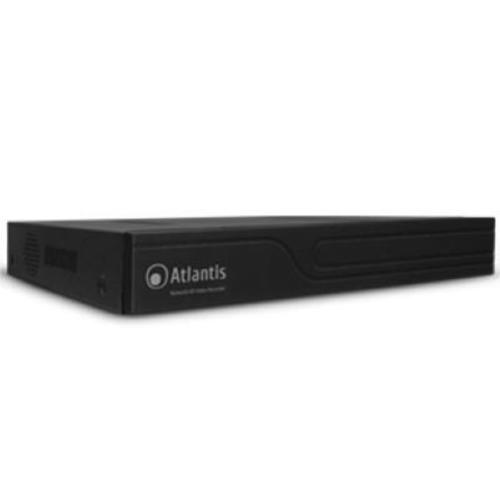

NVR IP ATLANTIS A11-NVR1600-4K fino a 16can.-8MPixel a 25fsp -H264 e H265- Supp.PTZ via IP - Uscita HDMI 4K

Product Name
NetNVR 4K 16

Code
A11-NVR1600-4K

Video Channel Supported
• 16 x 4K@400FPS (max 80mbps)

Chipset
HiSilicon 3798M

Video Output
• 1 x HDMI (1920x1080-P60 or 3840x2160-30)

PTZ
LAN

Sensor IN/OUT
4/1

Storage
2 x 3,5'' SATA1/2 (up to 3TB each HDD)

Other Connectors
• RJ-45 for Ethernet 10/100/1000 Base-T
• 2 x USB (mouse and external storage pheripherals)
• DC power jack (48V)

PoE Ports
N/A

Video System
PAL

Video Compression
• H.264
• MJPG
• H.265

FPS 8MP (3840x2160)
400 FPS: Recording 16Ch / Playback 1Ch (max 80Mbps)

FPS 5MP (2592x1944)
400 FPS: Recording 16Ch / Playback 1Ch (max 80Mbps)

FPS 3MP
400 FPS: Recording 16Ch / Playback 1Ch (max 80Mbps)

FPS Full HD (1920x1080)
400 FPS: Recording 16Ch /Playback 4Ch (max 40 Mbps)

FPS HD (1280x720)
400 FPS: Recording 16Ch /Playback 4Ch (max 40 Mbps)

Audio Codec
8Khz, 16 Bit ADPCM

Event (Action)
• Motion Detection (Email, Buzzer, Alarm on Monitor, Upload Server, Alarm Out, Recording, Snapshot, Preview, PTZ)
• Video Loss/tampering (Email, Buzzer, Alarm on Monitor, Upload Server, Alarm Out, PTZ)
• HDD/Network/IP (Buzzer, Upload Server, Alarm on Monitor, Alarm Out))
• Alarm IN (Email, Buzzer, Alarm on Monitor, Upload Server, Alarm Out, Recording, Snapshot, Preview, PTZ)

Recording Mode
• Always
• Schedule
• Alarm Detection (Motion, Alarm IN)
• Manual

Security
1 x Admin, Nx Users (with different level)

Advanced Networking
• Atlantis DNS (36 months free subscription), DynDNS, No-IP
• P2P (using QR code the customer can remotely control the device without any configuration)

Browser
IE (Active X), FireFox, Chrome, Edge (with Adobe Flash Player)

SmartPhone
Android / IOS

Backup
• USB Flash (FAT 32)
• USB HDD HD (FAT 32)
• Network (Browser or CMS)

System Requirements (only for WEB configuration or Live View with Internet Explorer)
- TCP/IP protocol must be installed on each PC
- Web browser, such as Microsoft Internet Explorer 6.0 or later (Active X), Chrome/FireFox/Opera/Safari
- CPU:Intel Celeron CPU E3400 @2.6GHZ or above
- Graphic Card: 64 MB RAM graphic cards (or equivalent on-board graphic cards)
- Windows Vista, 7, 8 (32/64), 10

NVR CMS
• Support connection to 16 DVRs at most and 64 channels video simultaneously
• Support visit of any video channel of different NVRs and screen dragging and random combination
• Support remote recording playback and backup
• Support off-line playing and smooth playing of backup video
• Support remote parameters configuration
• Support remote control of PTZ
• Support local capture and recording
• Support screen lock
• Compatible with all IP Facile (NVR and IP Camera)
• Onvif (1 month free, later need a fee for each channel)

NVR CMS System Requirements
- Windows 7, 8 (32/64), 10
- Microsoft .Net Framework 3.5 and Microsoft Visual C++2010 X86 Redistribuable Setup
- CPU:Intel Celeron CPU E3400 @2.6GHZ or above
- Multimedia: above DirectX 9.0;
- Recommended internal memory: above 4 GB
- Gigabit Card

Certifications
CE (Europe)

Dimensions (WxHxD)
360 x 245 x 45 mm (H 50mm with base support)

Weight
1650 g

Temperature Range
• Operation: 0°C ~ 32°C
• Storage: -10°C ~ 60°C

Humidity
20% ~ 80% (non Condensing)

Housing
Aluminium

Power Adapter
Input:100-240VAC, 50/60Hz, 1.5A Max
Output:12VDC, 4.0A, 48W Max
