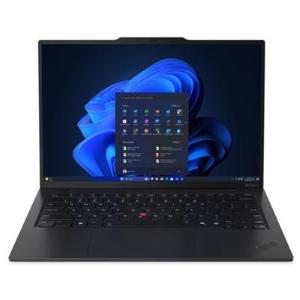

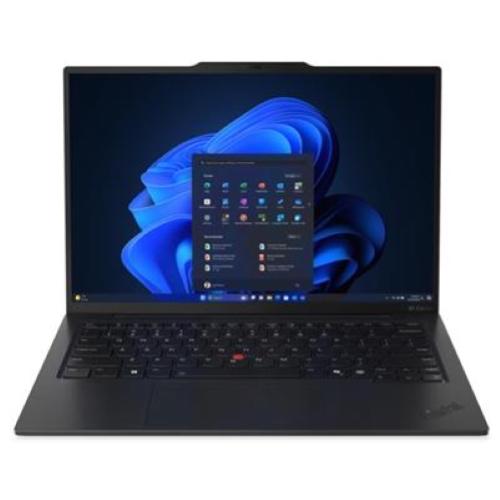

NB AI PC LENOVO Thinkpad X1 Carbon 21NX006LIX 14"WUXGA IPS AG Ultra7-255U 16DDR5 512SSD W11Pro 3YPremier RI BT 4USB HDMI RJ45 FP

PERFORMANCE
Processor: Intel® Core™ Ultra 7 255U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 5.2GHz, 12MB
AI PC Category: AI PC
NPU: Integrated Intel® AI Boost, up to 12 TOPS
Graphics: Integrated Intel® Graphics
Chipset: Intel® SoC Platform
Memory: 16GB Soldered LPDDR5x-8400
Memory Slots: Memory soldered to systemboard, no slots, dual-channel
Max Memory: 16GB soldered memory, not upgradable
Storage: 512GB SSD M.2 2280 PCIe® 5.0x4 Performance NVMe® Opal 2.0
Storage Support: 1x drive, up to 2TB M.2 2280 SSD
Storage Slot: 1x M.2 2280 PCIe® 4.0 x4 slot
Card Reader: No
Audio Chip: High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers: Stereo speakers, 2W x2, Dolby Atmos®
Camera: FHD 1080p + IR Discrete with Privacy Shutter
Microphone: 2x, 360°
Battery: 57Wh
Power Adapter: 65W USB-C® Slim GaN (3-pin)

DESIGN
Display: 14'' WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, 60Hz, Low Power
Touchscreen: No
Keyboard: Backlit, Italian
Touchpad: Haptic Touchpad
Case Color: Black, Paint
Case Material: Carbon Fiber (Top), Aluminium (Bottom)
Pen: Pen Not Supported
Dimensions (WxDxH): 312.80 x 214.75 x 8.38/14.77 (front/rear), 17.95 (maximum) mm;
Weight: 1006 g

SOFTWARE
Operating System: Windows® 11 Pro
Bundled Software: Intel® Connectivity Performance Suite

CONNECTIVITY
WLAN + Bluetooth: Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + Bluetooth 5.3
WWAN: WWAN Upgradable to 4G or 5G
SIM Card: No
Ethernet: No Onboard Ethernet
NFC: No
Standard Ports:
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured): 1x Nano-SIM Card Slot
Docking: Various docking solutions supported via Thunderbolt™ / USB-C®.

SECURITY & PRIVACY
Smart Card Reader: No
Security Chip: Discrete TPM 2.0 Enabled
Fingerprint Reader: Touch Style, Match-on-Chip, in Keyboard Key
Physical Locks: Kensington® Nano Security Slot™, 2.5 x 6 mm
Other Security:
- Camera privacy shutter
- Ultrasonic Human Presence Detection
- IR camera for Windows® Hello (facial recognition)

MANAGEABILITY
System Management: Non-vPro®

CERTIFICATIONS
Green Certifications:
- ENERGY STAR® 8.0
- EPEAT™ Gold Registered
- ErP Lot 6/26
- RoHS compliant
- TCO Certified 10.0
Other Certifications:
- Eyesafe® Certified 2.0
- Intel® Evo™ Platform
- SGS High Performance Al PC Certification
Mil-Spec Test: MIL-STD-810H military test passed
