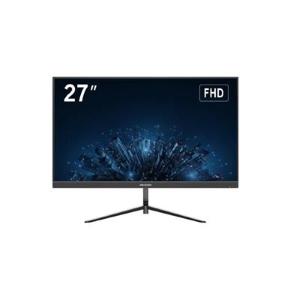

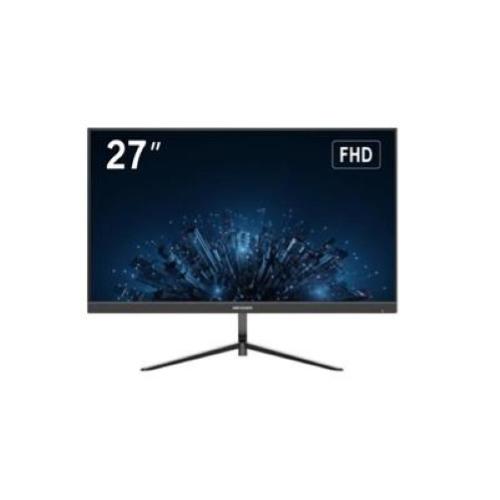

HIKVISION MONITOR LCD IPS LED 27" WIDE FRAMELESS DS-D5027F3-2P214ms 100HZ FHD 1300:1 BLACK VGA HDMI Vesa SAP 31750070 Fino:09/01

Display

Screen Size: 27 inch
Active Display Area: 597.888 (H) mm × 336.312 (V) mm
Resolution: 1920 × 1080
Backlight: E-LED
Pixel Pitch: 0.3114 (H) mm × 0.3114 (V) mm
Brightness: 300 cd/m2
Viewing Angle: 178° (H) / 178° (V)
Color Depth: 8 bit, 16.7 M
Contrast Ratio: 1300 : 1
Response Time: 14 (Typ) ms
Refresh Rate: 100 Hz
Haze: Haze 25%, 3H
Color Gamut: 72% NTSC
Reliability: 7 * 24H

Interface

Video & Audio Input: HDMI1.4 ×1, VGA×1
Video & Audio Output: Line-Out × 1
Data Transmission Interface: NULL
Control Interface: NULL

Power

Power Supply: DC 12V, 2.5A Max
Power Consumption: ≤ 30 W
Standby Consumption: ≤ 0.5 W

Working Environment

Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Working Humidity: 10% ~ 90% RH (Non-Condensing)
Storage Temperature: -20 °C to 60 °C (-4°F to 140 °F)
Storage Humidity: 5% ~ 90% RH (Non-Condensing)

General

Casing Material: Plastic
VESA: 100 mm ×100 mm (4-M4 × 10 mm)
Bezel Width: 0.12 inch (top/left/right), 0.87 inch (bottom)
Product Dimensions (W × H × D): 24.16 (W) × 14.5 (H) × 1.87 (D) inch (without base), 24.16 (W) × 18.56 (H) × 7.6 (D) inch (with base)
Package Dimensions (W × H × D): 27.01 (W) × 17.72 (H) × 5.04 (D) inch
Net Weight: 3.45 ± 0.5 kg (7.61 ± 1.1 lb.)
Gross Weight: 4.90 ± 0.5 kg (10.80 ± 1.1 lb.)

Packing List

Monitor × 1
Base component × 1
Base Screws (Hex Socket) × 1
Hex Key × 1
Adapter (12V 2.5A) × 1
HDMI Cable (1.5m) × 1
User Manual × 1
Multilingual manual × 1

Remarks

The base is included by default.
The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.

Physical Interface

HDMI: HDMl 1.4 digital signal input interface
VGA: VGA analog signal input interface
DC: DC 12V 2.5A input interface
Line-Out: 3.5mm Audio Output
