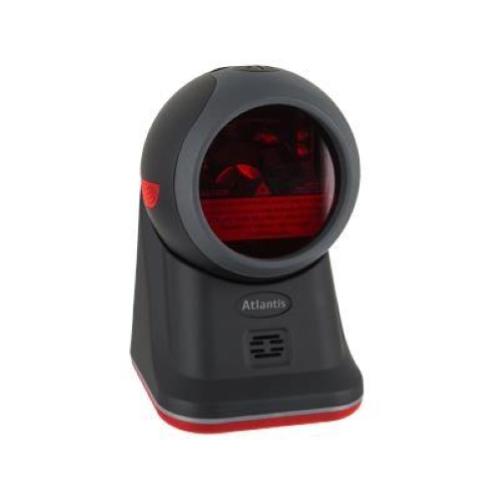

LETTORE BARCODE OMINIDIR. ATLANTIS A08-OLS15 Tecnol.laser - Sens.650nm-Lett.216mm-200sec.- ENA: 8026974018386

Optical
Optical sensor: Omnidirectional Laser
Light source: Laser diode(650nm)
Resolution: 4 mil (code39), 7,5 mil (Datamatrix), 5 mil (PDF 417)
Depth of Field: up to 216mm (EAN) @ 13mil, 90% PCS
Scan Rate: 200 scans/sec - 20lines pattern
Electrical
Voltage: +5V
Scanning currents:0.32A
Standby currents: 0.23A
Power Consumption: 1,6 wats
Environment
Operating temperature: 0°C to 40°C / 32°F to 104°F
Storage temperature: -20°C to 60°C / -4°F to 140°F
Light level: Max 5.000 LUX
Operating humidity: 95% RH, non-condensing
Storage humidity: 85% RH, non-condensing at 158° F/70° C
Shock resistance: No
Physical
Weight: 380g
Dimensions: 107mm(D)x95mm(W)x145mm(H)
Housing Material: ABS
Cable Lenght: 1.8 m

Codici a barre supportati
(1D)
UPC/EAN/(UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplemental
ISBN
ISSN
Coupon Code)
Code 39
Code 39 Full ASCII
Trioptic
Code 32 (Italian Pharmacode)
Code 128
(Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
Code 93
Codeabar/NW7
Interleaved 2 of 5
Descrete 2 of 5
IATA Chinese 2 of 5
Matrix 2 of 5
Code 11
MSI Plessey
GS1Databar
(Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
(PDF417 var) PDF417 (Standard, Macro)
MicroPDF417 (Standard, Marco)
Composite Code (CC-A, CC-B, CC-C)
(2D)

Optical
Optical sensor: Optical Sensor 752(H) x 480(V) Wide VGA
Light source + Illumination: 625 nm Aiming LED + illumination 630nm LED
Resolution: 4 mil (code39), 7,5 mil (Datamatrix), 5 mil (PDF 417)
Depth of Field: up to 267mm
Field of view: 46.1° Horiz - 30,4° Vertical
Electrical
Voltage: +5V±5%
Scanning currents: <260 mA
Standby currents: <150 mA
Power Consumption: 1,4 wats
Environment
Operating temperature: 0°C to 40°C / 32°F to 104°F
Storage temperature: -40°C to 70°C / -40°F to 140°F
Light level: Maximum 86,100 Lux. (direct sunlight)
Operating humidity: 95% RH, non-condensing at 122° F/50° C
Storage humidity: 85% RH, non-condensing at 158° F/70° C
Shock resistance: 1.5m drops
Physical
Weight: 300g(w/cable)
Dimensions: 140mm(L)x73mm(W)x70mm(H)
Housing Material: ABS plastic
Cable Lenght: ~ 150 cm

Codici a barre supportati
All UPC/EAN/JAN
EAN128 Code
Code 39
Code 39 Full ASCII
Code32 / Italian Pharmacy
Code 128
CODABAR/NW7
Interleave 25
Industrial 25
Matrix 25
MSI/PLESSEY
Telepen
Code 93
Code 11
China Postage
GS1 DataBar
