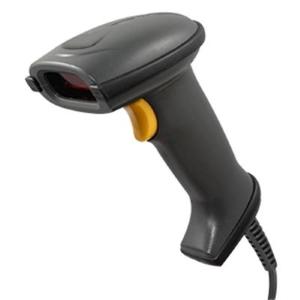

LETTORE BARCODE ATLANTIS A08-LS160 USB - Tecn.LASER Lett.0-330mm - 300 scan/sec -655nm-Sost.mod.A08-LS1500 Fino:30/04

Optical sensor
Laser sensor (650nm)

Resolution
≥3mil (code 128 6 digits)

Depth of Field
Up to 330mm (13mil code39 PCS 90%)

Scan Rate
300 scans/second

Scan Width
30mm@scan window
220mm@200mm

Scan Angle
30° Roll
65°Skew
55° Pitch

Voltage
5VDC

Operating Current
85mA

StadBy Current
30mA

Operating temperature
-0°C to 50°C

Storage temperature
 40°C to 70°C

Light Level
Daylight, 3000-8000LUX

Humidity
5% to 95% RH non-condensing

Drop Resistance
Up to 1.5m

Weight
246g

Dimensions
175 × 73 × 102 mm

Material
ABS+PC

IP Level
IP54

Cable Lenght
2m

Supported barcode
Codabar
Code11
Code39
Code32
Interleaved 2 of 5
Industrial 2 of 5
Matrix 2 of 5
Code93
Code128
GS1-128
UPC-A
UPC-E
EAN 8
EAN 13
GS1 DataBar
RSS14
GS1 DataBar Limited
GS1 DataBar Expanded
