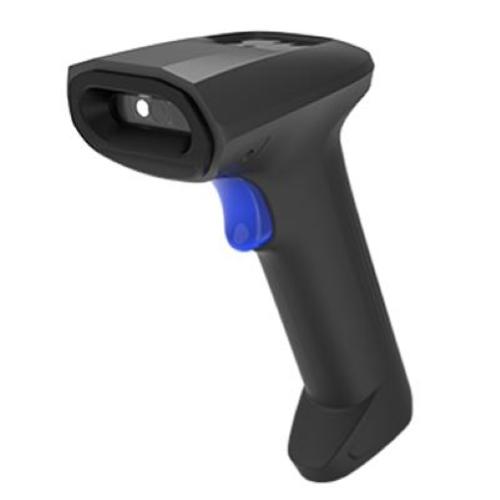

LETTORE BARCODE ATLANTIS A08-LD190-2D USB-colleg.manuale- Tecnol.ottica 2D Sens.640x480 Risol.3 mils- Prof.campo 60- Fino:30/04

Optical Sensor
640(H) x 480(V)

Resolution
≥3mil (code 128 6 digits)

Depth of Field
60~300mm (13mil code39 PCS 90%)

Scan Rate
60 scans/second

Scan Angle
360° Roll
55°Skew
55° Pitch

Voltage
5VDC

Operating Current
300mA

StadBy Current
160mA

Operating temperature
-10°C to 50°C

Storage temperature
- 20°C to 60°C

Light Level
0 ~ 5000Lux (fluorescent light)
0 ~ 100,000Lux (sunlight)

Humidity
5% to 95% RH non-condensing

Drop Resistance
Up to 1.5m

Weight
175g

Dimensions
70,9 × 64,4 × 86,8 mm

Material
ABS+PC

IP Level
IP54

Cable Lenght
1,5m

Supported barcode (1D)
Codabar
Code11
Code39
Code32
Interleaved 2 of 5
Industrial 2 of 5
Matrix 2 of 5
Code93
Code128
GS1-128
UPC-A
UPC-E
EAN 8
EAN 13
GS1 DataBar
RSS14
GS1 DataBar Limited
GS1 DataBar Expanded

Supported barcode (2D)
PDF417
Micro PDF417
QR Code
Micro QR
Data Matrix
Aztec Code
Hanxin code
Maxicode
