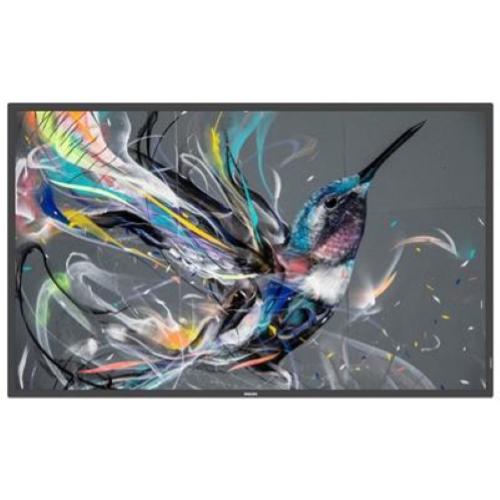

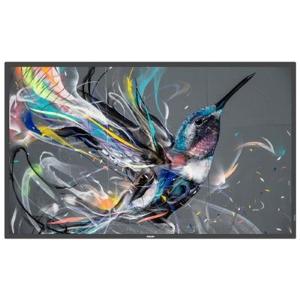

MONITOR PHILIPS DIGITAL SIGNAGE 65" Q-Line 65BDL3511Q/00 8ms MM UHD BLACK DVI 3xHDMI 2xUSB LAN Vesa NO BASE

Picture/Display
• Diagonal screen size: 64.5 inch / 163.9 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @ 60 Hz
• Brightness: 400 cd/m²
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.372 x 0.372 mm
• Display colors: 1.07 Billion
• Panel technology: IPS
• Contrast ratio (typical): 1200:1
• Clinical image: D-Image preset (dicom part 14 compatible)
• Haze: 1%

Supported Display Resolution
• Computer formats
640 x 480 @ 60, 67, 72, 75Hz
720 x 400 @ 70Hz
800 x 600 @ 56, 60, 72, 75Hz
832 x 624 @ 75Hz
1024 x 768 @ 60, 70, 75Hz
1152 x 864 @ 75Hz
1152 x 870 @ 75Hz
1280 x 720 @ 60Hz
1280 x 800 @ 60Hz
1280 x 1024 @ 60Hz
1440 x 900 @ 60Hz
1600 x 1200 @ 60Hz
1680 x 1050 @ 60Hz
1920 x 1080 @ 60Hz
• Video formats
480i @ 60Hz
480p @ 60Hz
576p @ 50Hz
576i @ 50Hz
720p @ 60Hz
1080i @ 50, 60Hz
1080p @ 50, 60Hz
3840 x 2160 @ 30Hz
3840 x 2160 @ 60Hz

Connectivity
• Video input: DVI-I (x 1), HDMI 2.0 (x3), USB 2.0 (x2)
• Audio input: 3.5 mm jack
• Audio output: 3.5mm jack
• External control: IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack

Convenience
• Placement: Landscape (18/7), Portrait (18/7)
• Tiled Matrix: Up to 10 x 15
• Signal loop through: RS232, IR Loopthrough
• Ease of installation: Smart Insert
• Energy saving functions: Smart Power
• Network controllable: RS232, RJ45
• Keyboard control: Hidden, Lockable
• Remote control signal: Lockable
• Start-up: Switch on delay, Switch on status, Boot on source
• Start-up window: enable / disable Philips logo

Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 ~ 80% RH (No condensation)
• Humidity range (storage) [RH]: 5 ~ 95% RH (No condensation)

Power
• Consumption (Typical): 165 W
• Consumption (Max): 220 W
• Standby power consumption: <0.5W
• Mains power: 100 - 240V~, 50/60Hz
• Power Saving Features: Smart Power
• Energy Label Class: G

Sound
• Built-in speakers: 2 x 10W RMS

Accessories
- IR sensor cable (1.8 m) (x1)
- Philips logo (x1)
- AC power cord
- AC Switch Cover
- Quick start guide (x1)
- Remote control & AAA batteries
- RS232 daisy chain cable (x1)
- USB Cover and screw x1
- Wire Clamper (x3)

Miscellaneous
• On-Screen Display Languages: Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese
• Regulatory approvals: CE, FCC, Class A, CB, BSMI, VCCI, CU, ETL, EMF, PSB

Multimedia Applications
• USB Playback Video: H.264, JPEG, MPEG, WMV3
• USB Playback Picture: BMP, JPEG, PNG
• USB Playback Audio: AAC, WMA, MPEG, HEAAC

Dimensions
• Set dimensions (W x H x D): 1462.3 x 837.3 x 68.9mm(D @wall mount) / 89.9mm(D @handle) mm
• Set dimensions in inch (W x H x D): 57.57 x 32.96 x 2.71(@ wall mount) / 3.54(@ handle) inch
• Bezel width: 14.9 mm (Even bezel)
• VESA Mount: 400 x 400 mm, M8
• Product weight: 27.80 kg
• Product weight (lb): 61.29 lb
