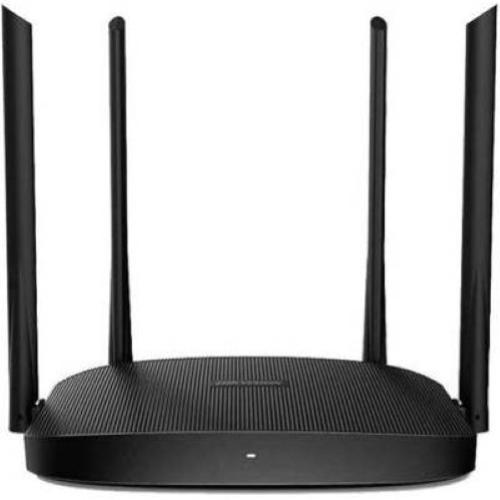

WIRELESS ROUTER Dual Band AC1200M HIKVISION DS-3WR12C WiFi 5-Dual Band - 3P LAN 100M 1P WAN 100M- 4 ant.5 dBi Fino:30/06

General
Product Dimension (W × H × D): 248.4 × 154.8 × 213.34 mm
Package Dimension (W × H × D): 306 × 290 × 59 mm
Net Weight: 0.222 kg
Packing List: Wireless Router x 1, Ethernet cable × 1, Quick installation guide × 1
Packing Method: Single pack
Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity: 10% to 90% RH non-condensing
Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity: 5% to 90% RH non-condensing
Installation Mode: Desktop installation
Max. Power Consumption: ≤ 9 W
Gross Weight: 0.722 kg (1.592 lb)

Wireless Parameter
Data Rate:
- ≤ 1167 Mbps
- 2.4 GHz: 300 Mbps
- 5 GHz: 867 Mbps
Wireless Standard: IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
Working Frequency Band: 2.4 GHz，5 GHz
Transmitting Power:
- CE:
- <20 dBm(2.4G)
- <23 dBm(5G)
Wireless Performance:
- 4 × 4 MU-MIMO supported
- Beamforming supported
Receiving Sensitivity:
- 58 ± 2 dB@AC80 -MCS9
- 84 ± 2 dB@AC80 -MCS0
Antenna: 4 high gain antennas
Operating Frequency:
- 2.4 GHz: US/2412-2472 MHz(CH1-CH13)
- 5 GHz: US/5180-5240 MHz(CH36-CH48)
- 5 GHz: US/5740-5805 MHz(CH149-CH161)
EIRP Power(Max.):
- 2.4 GHz: 19.86 dBm
- 5 GHz: 22.96 dBm

Hardware Parameter
Network Interface:
- 1x 10/100Mbps WAN port
- 3x 10/100Mbps LAN ports
LED Indicator: LED indicator
Rispristina: Reset button
Power Supply Method: 9 VDC, 1 A power adapter power supply
Power Specifications: 9 VDC, 1 A

Software Function
Application function:
- Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported
- DHCP Server supported
- Guest Network Configuration supported
- Signal Adjustment supported
- WiFi Schedule supported
Security Mode: WPA-PSK, WPA2-PSK, WPA and WPA2 supported
Security Mechanism: Hide SSID
Management Method: Web
Upgrade: Web Update and Upgrade
System Log: System log
