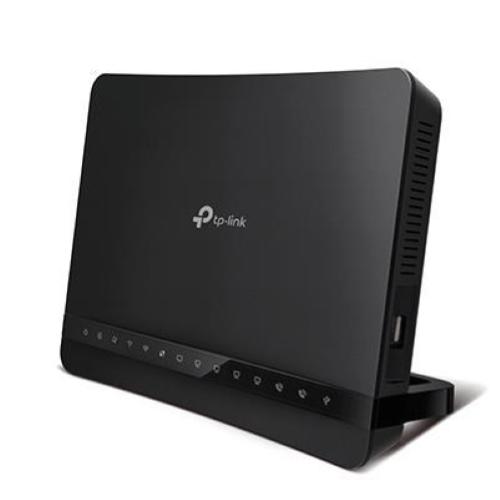

Wireless ROUTER AC1200 + Voip TP-LINK Archer VR1200V DualBand 867M/5Ghz+300M/2.4Ghz 5P Giga -comp.DSL/EWAN e Fibra

CARATTERISTICHE HARDWARE
Interfaccia:
- 4 10/100/1000Mbps RJ 45 LAN Ports
- 1 10/100/1000Mbps RJ 45 WAN Port
- 3 RJ11 Ports (1 DSL Port + 2 FXS Ports)
- 1 USB 2.0 Port
Tasto: WPS Button, Wi-Fi Button, Reset Button, Power On/Off Button
Alimentazione: 12V/1.5A
Standard wireless:
- IEEE 802.11a/n/ac 5GHz,
- IEEE 802.11b/g/n 2.4GHz
Standard IEEE: IEEE 802.3, IEEE 802.3u, 802.3ab
Standard VDSL2:
- ITU-T G.993.2, Up to 30a profile (POTS)
- ITU-T G.993.5 (G.vector)
- ITU-T G.998.4 (G.INP）
Standard ADSL:
- Full-rate ANSI T1.413 Issue 2,
- ITU-T G.992.1(G.DMT),
- ITU-T G.992.2(G.Lite),
Standard ADSL2:
- ITU-T G.992.3 (G.DMT.bis),
- ITU-T G.992.4 (G.lite.bis)
Standard ADSL2+: ITU-T G.992.5 Annex A/M
Dimensioni ( L x P x A ): 214* 144.5*80 mm
Tipo di antenna: Internal antennas
Guadagno antenna: 2dBi for 2.4G/3dBi for 5G

CARATTERISTICHE WIRELESS
Frequenza: 2.4GHz and 5GHz (no DFS)
Signal rate: 867Mbps at 5GHz, 300Mbps at 2.4GHz
Potenza di trasmissione:
- 2.4GHz <20dBm
- 5GHz <23dBm
Funzionalità wireless: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Sicurezza wireless: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

CARATTERISTICHE SOFTWARE
QoS (Quality of Service): Bandwidth Control
Sicurezza: NAT Firewall, Access Control, IP and MAC Address Binding
Modalità operative:
- VDSL2 Modem Router
- Wireless Router
- 3G/4G Router
Gestione:
- Web based configuration(HTTP)
- SNMP v1/v2c
- CWMP(TR-069)
DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS: DynDns, NO-IP
VPN pass-through: PPTP, IPSec Passthrough
Protocolli: Supports IPv4 and IPv6
Protocolli ATM/PPP: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Funzionalità avanzate: Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3
Condivisione USB: Support Samba(Storage)/FTP Server/Media Server, 3G/4G Modem
VPN IPsec: Supports up to 16 IPSec VPN tunnels

ALTRO
Certificazione: CE, RoHS
Contenuto della confezione:
- DSL VoIP Modem Router Archer VR1200v
- External Splitter
- RJ11 DSL Cable
- RJ45 Ethernet Cable
- Power Adapter
- Quick Installation Guide
Requisiti di sistema:
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0,
- Safari 4.0, or other Java-enabled browser
- Cable or DSL Modem Subscription with an Internet Service Provider (for Internet access)
Ambiente:
- Operating Temperature: 0℃~40℃
- Storage Temperature: -40℃~70℃
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
