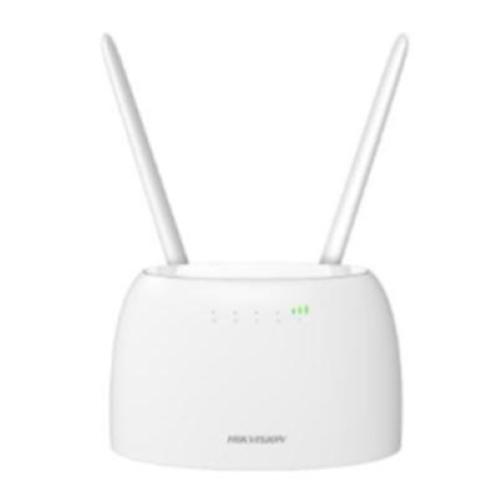

WIRELESS ROUTER 4G AC1200 HIKVISION DS-3WR4G12C Dual Band - Cat.4

General
Product Dimensions (W × H × D): 233.9mm×151.4mm×40.3mm
Package Dimensions (W × H × D): 405mm×307mm×80mm
Net Weight: 0.560kg
Packing List:
- 4G LTE Router × 1
- Power Adapter × 1
- Detachable Antenna × 2
- Ethernet Cable × 1
- SIM Card Adapter × 1
- Quick Start Guide × 1
- Regulatory Compliance and Safety Information × 1
Packing Method: Single pack
Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Working Humidity: 10% to 90% RH non-condensing
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity: 5% to 90% RH non-condensing
Installation Mode: Desktop installation
Max. Power Consumption: ≤ 9 W
Gross Weight: 0.620 kg

Wireless
Max. Transmission Rate of Air Interface:
- ≤ 1167 Mbps
- 2.4 GHz: 300 Mbps
- 5 GHz: 867 Mbps
Wireless Standard: IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
Working Frequency Band: 2.4 GHz，5 GHz
Transmitting Power: 16dBm @ 2.4G-mcs7, 17dBm @ 5G-mcs9
Wireless Performance: 2*2 MIMO supported
Receiving Sensitivity:
- -58 ± 2 dB@AC80 -MCS9
- -84 ± 2 dB@AC80 -MCS0
Antenna: 2 high gain antennas
Network Type: LTE CAT.4
Mobile Standards: FDD LTE, TDD-LTE,WCDMA
Mobile Bands: 4G FDD LTE: B1/B3/B7/B8/B20/B28AB,4G TDD-LTE: B38/B40/B41,3G WCDMA: B1/B8
4G Speed: DL: 150 Mbps, Upload: 50 Mbps

Hardware
Network Interface: 2 × RJ45, 10/100 Mbps auto-negotiation
LED Indicator: power LED x 1, internet LED x 1, WiFi LED x 1, RJ45 LED x 1, LTE LED x 3
Rispristina: Reset button x 1
Power Supply Method: 9 VDC, 1 A power adapter power supply
Power Specifications: 9 VDC, 1 A

Software
Application Function:
- 3G/4G Route Mode, Wireless Router Mode, and AP Mode supported
- DHCP Server supported
- Guest Network Configuration supported
- Signal Adjustment supported
- WiFi Schedule supported
Security Mode: WPA-PSK, WPA2-PSK, WPA and WPA2 supported
Security Mechanism: Hide SSID
Management Method: Web
Upgrade: Web
System Log: System log
