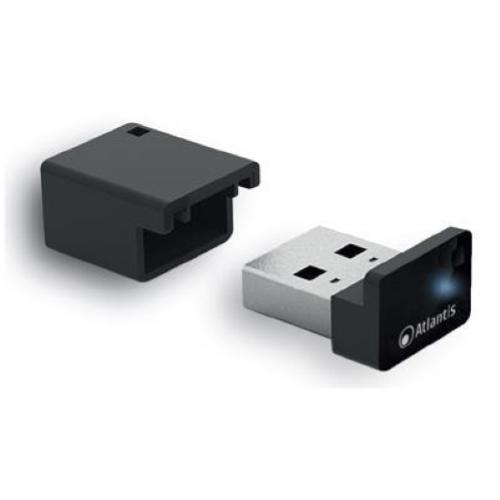

WIRELESS 150M LAN USB ATLANTIS A02-UP3-WN 802.11bgn - Modalita Access Point - Garanzia 2 anni-

Standards: IEEE 802.11b/g/n
Chipset: Realtek® 8188CUS
Interface: USB V2.0/V1.1
LED: 1 (Status)
WPS: Yes (SW button)

Antenna
Internal Striped Antenna

Advanced Features
• AP Mode on Windows 7/Vista/XP
• WMM

Frequency Band: 2412 ~ 2483 MHz

Radio Technology
• IEEE 802.11g/n: Orthogonal Frequency Division Multiplexing (OFDM)
• IEEE 802.11b: Direct Sequence Spread Spectrum (DSSS)

Modulations Scheme: DBPSK/DQPSK/CCK/OFDM
Media Access Protocol: CSMA/CA with ACK
Transmission Rate. Up to 150Mbps (auto-sense with auto fallback)
Security: 64/128-bit WEP, WPA-PSK, WPA2-PSK
Transmitting Power: 802.11b/g/n: up to 16 ± 1 dBm

Receiver Sensitivity
• 802.11b (1Mbps): -90dBm @8% PER
• 802.11b (6Mbps): -88dBm @8% PER
• 802.11b (11Mbps): -85dBm @8% PER
• 802.11g (54Mbps): -68dBm @10% PER
• 802.11n (150Mbps): -68dBm @10% PER
Number of Operational Channel: Europe (13)

Range Coverage
• Indoor: up to 100 meters
• Outdoor: up to 300 meters

Supported OS
• MS Windows® VISTA (32/64-bit)
• MS Windows® XP (32/64-bit)
• MS Windows® 7 (32/64-bit)
• Linux Kernel 2.6.18 ~ 2.6.35
• Mac OS X 10.4/10.5/10.6 (Intel)
• Mac OS X 10.4/10.5 (PowerPC)

Certifications: CE (Europe), WHQL Certification for driver
Dimensions (mm). 14 x 7 x 10 (without USB)

Temperature Range
Operation: 0°C ~ 32°C
Storage: -10°C ~ 60°C
Humidity: 10% ~ 75% (non Condensing)
Continuos Current Consumption: 240mA (Tx), 370mA (Rx)

System Requirements
• PC with available USB V2.0/1.1 slot
• Intel® Pentium®III 600Mhz or compatible processor with 512MB RAM
• Windows® XP/Vista/7, Mac OS X or Linux operating system
• Minimum 45 Mbytes free disk space for installing the driver and utilities
• CD-Rom drive

Package Contents
• One NetFly USB Wireless Adapter
• Quick Start Guide (English, French and Italian)
• CD-Rom with Utility, Driver and Manual (English, French and Italian)
• 1 x Warranty Card and 1 x WEEE Card
