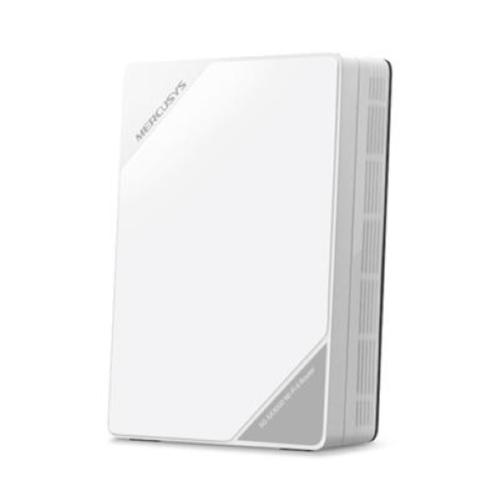

Router Wireless AX3000 5G MERCUSYS MB520-5G Dual Band 574/2402Mbps 1P WAN/LAN 2.5Gbps 1P telef. RJ11 -Ant. int.

WIRELESS

Network Type
- EU: 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
- FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
- TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
- HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

Wi-Fi Class
AX3000

Wi-Fi (2.4 GHz)
574 Mbps

Wi-Fi (5 GHz)
2402 Mbps

Frequency
5 GHz, 2.4 GHz

Wireless Standards
IEEE 802.11ax/ac/a/b/g/n

Reception Sensitivity
5 GHz:
- 11ax HE20: -64 dBm
- 11ax HE40: -61 dBm
- 11ax HE80: -59 dBm
- 11ax HE160: -56 dBm
- 11ac VHT20: -70 dBm
- 11ac VHT40: -67 dBm
- 11ac VHT80: -64 dBm

2.4 GHz:
- 11ax HE20: -66 dBm
- 11ax HE40: -62 dBm
- 11ac VHT20: -71 dBm
- 11ac VHT40: -67 dBm

Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz band1, 2 < 23dBm (EIRP)
5 GHz band3 < 30dBm (EIRP)

Wireless Security
WPA-PSK / WPA2-PSK / WPA3-SAE

Wireless Functions
Smart connect
WPS
Wireless Schedule
Wireless Clients Statistics
Easymesh
Multi-SSID

SOFTWARE

Operation Modes
5G/4G/3G Router
Wireless Router

Cellular Mode
5G Preferred
5G Only
4G Preferred
4G Only
3G Only

Cellular APN
Data Roaming
Network Search
Band Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management

WAN Mode
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

DHCP
Server
DHCP Client List
Address Reservation

NAT Forwarding
ALG
Virtual Server
Port Triggering
UPnP
DMZ

Protocols
IPv4, IPv6

Data Settings
Data Statistics
Data Limit

Guest Network
2.4 GHz Guest Network
5 GHz Guest Network

Parental Controls
Time Control
Website Filtering

DDNS
DynDns
NO-IP

VPN Sever
Open VPN
PPTP VPN
IPSec VPN

SMS
Inbox
New Message
Outbox
Drafts

QoS
√

Security
IPv4 SPI Firewall
Service Filtering
Access Control
IP & MAC Binding
IPv6 Firewall

System Settings
Time Settings
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot Schedule
Administration
System Log
Traffic Statistics

Device Management
MERCUSYS APP
Web GUI

System Language
Czech
Danish
English
Spanish
French
Italian
Polish
Romanian
Russian
Turkish
Hungarian
Indonesian
Chinese - Taiwan

TR-069
√

HARDWARE

Dimensioni (W X D X H)
190 × 130 × 69.7 mm
(7.5 × 5.1 × 2.7 in)

Interfaces
1× 2.5 Gbps LAN/WAN Port
1× Gigabit LAN Port
1× RJ11 Phone Port
2× 5G/4G External Antenna Ports
1× Nano SIM Card Slot

Antenna
Internal

Button
WPS, Reset Button

External Power Supply
12V/2A

LED
1× Power
1× Internet
1× Phone
3× Signal

NR Standard
4.67/1.25Gbps DL/UL

LTE Standard
Cat 19
1.6Gbps/200Mbps DL/UL

OTHERS

Package Contents
5G AX3000 Wireless Dual Band Router (MB520-5G)
Power Adapter
RJ45 Ethernet Cable
RJ11 Phone Cable
Quick Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
