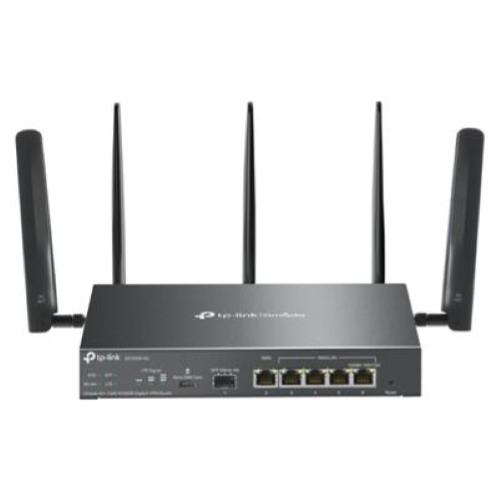

ROUTER Gibabit VPN Omada 4G AX3000 TP-LINK ER706W-4G 1P Giga WAN+4P Giga WAN/LAN-1P Giga SFP WAN/LAN 1 slot Nano Sim

4G
LTE Band:
• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)
Carrier Aggregation:
• B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
• B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
• B5+B5/B7/B38/B40/B41
• B7+B7/B8/B20/B28/B32
• B8+B32/B38/B40/B41
• B20+B32/B38/B40
• B28+B32/B38/B40/B41
• B38+B38
• B40+B40
• B41+B41
SIM Type: 1× Nano SIM Card
Frequenza:
• Downlink: 300 Mbps
• Uplink: 50 Mbps

SICUREZZA
Controllo dell'accesso: Controllo dell'accesso basato su IP di origine/destinazione
Filtering:
• Web Group Filtering
• URL Filtering
• Web Security
ARP inspection:
• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding
Attack defense:
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

CARATTERISTICHE HARDWARE
Interfaccia:
• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
Media:
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Tasto: Reset Button
Alimentazione: 12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate:
• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)
Flash: 128 MB NAND
DRAM: 512 MB DDR4
LED: SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensioni ( L x P x A ): 226 × 131 × 35 mm (Antenna dimensions are not included)
Antenna:
• Wi-Fi: 3x 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
• LTE: 2x 4.0dBi omnidirectional detachable antennas
Tipo di montaggio: Desktop/Wall-Mounting
Max Power Consumption: 17.3W

PRESTAZIONI
GRE:
• Unencrypted: 545.3Mbps
• Encrypted: 282.6Mbps
WireGuard VPN: 387.7Mbps
Sessioni concorrenti: 150,000
New Sessions /Second: 5,100
NAT (Static IP): 947.1Mbps / 940.1Mbps
NAT(DHCP): 949.2Mbps / 941.1Mbps
NAT(PPPoE): 942.6Mbps / 941.1Mbps
NAT (L2TP): 875.4Mbps / 892.0Mbps
NAT (PPTP): 881.2Mbps / 895.8Mbps
Throughput VPN IPsec:
• ESP-SHA1-AES256: 652.2Mbps
• ESP-SHA256-AES256: 654.4Mbps
• ESP-SHA384-AES256: 646.5Mbps
• ESP-SHA512-AES256: 670.5 Mbps
OpenVPN: 115.5Mbps
L2TP VPN Throughput:
• Unencrypted: 990.0Mbps
• Encrypted: 475.0Mbps
PPTP VPN Throughput:
• Unencrypted: 1177.9Mbps
• Encrypted: 177.4Mbps
SSL VPN Throughput: 122.5Mbps
66 Byte Packet forwarding rate: 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate: 81274 pps / 91275 pps

CARATTERISTICHE WIRELESS
Funzionalità avanzate:
• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio)
Rete ospiti: Support

FUNZIONI DI BASE
Tipo connessione WAN:
• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
MAC clone: Modify WAN Address
DHCP:
• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
SMS: Receive / Send SMS
IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

FUNZIONALITA' AVANZATE
ACL: IP/Port/Protocol/Domain Name Filtering
Routing avanzato:
• Static Routing
• Policy Routing
• RIP
• OSPF
Bandwidth control: IP-Based Bandwidth Control
Load balance:
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection
NAT:
• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit: IP-Based Session Limit

VPN
GRE: Only in Standalone Mode
SSL VPN: 50 Tunnels
VPN IPsec:
• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
VPN PPTP:
• PPTP VPN Server
• PPTP VPN Client (10)
• 50 Tunnels
• PPTP with MPPE Encryption
VPN L2TP:
• L2TP VPN Server
• L2TP VPN Client (10)
• 50 Tunnels
• L2TP over IPSec
OpenVPN:
• OpenVPN Server
• OpenVPN Client (5)
• 55 OpenVPN Tunnels
• ''Certificate + Account'' Mode
• Full Mode

AUTHENTICATION
Web Authentication:
• No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• LDAP

GESTIONE
Omada App: Sì
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Sì
Servizio: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Manutenzione:
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller.
Management Features:
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
• ER706W-4G
• Power Adapter
• Quick Installation Guide
Requisiti di sistema:
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Ambiente:
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
