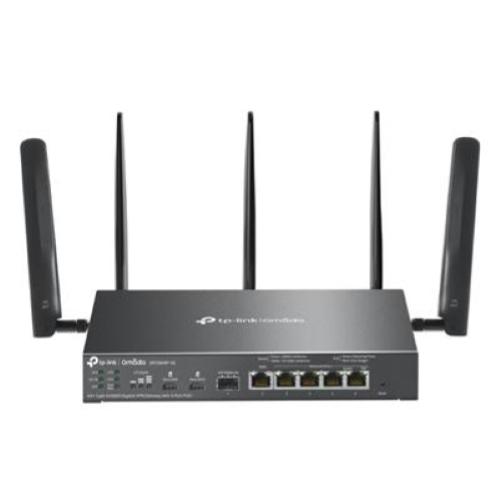

GATEWAY VPN Gibabit Omada 4G+ AX3000 TP-LINK ER706WP-4G 1P Giga RJ45 WAN+4P Giga WAN/LAN-1P Giga SFP WAN/LAN 2 slot Nano Sim

4G
Ne2xrk Type:
- 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
- 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
- 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)
Carrier Aggregation:
- B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
- B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
- B5+B5/B7/B38/B40/B41
- B7+B7/B8/B20/B28/B32
- B8+B32/B38/B40/B41
- B20+B32/B38/B40
- B28+B32/B38/B40/B41
- B38+B38
- B40+B40
- B41+B41
SIM Type: 2× Nano SIM Card (4G+ Cat6)
Frequency:
- Downlink: 300 Mbps
- Uplink: 50 Mbps

SICUREZZA
DPI: Application control via DPI / Updated app library
IDS/IPS: Signature-based IPS/IDS threat detection
Access Control: Source/Destination IP Based Access Control
Filtering:
- Web Group Filtering
- URL Filtering
- Web Security
ARP inspection:
- Sending GARP Packets
- ARP Scanning
- IP-MAC Binding
Attack defence:
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN

CARATTERISTICHE HARDWARE
Interfaccia:
- 1 Gigabit SFP WAN/LAN Port
- 1 Gigabit WAN Port
- 4 Gigabit LAN/WAN Ports
Media:
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Tasto: Reset Button
Alimentazione: 4 Ports PoE+ Output, 45 W PoE Budget
Wi-Fi Frequency & Signal Rate:
- 2.4 GHz: 574 Mbps
- 5 GHz: 2402 Mbps (HE160)
Flash: 256 MB NAND
DRAM: 512 MB DDR4
LED: SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act, PoE)
Dimensioni (L x P x A): 226 × 131 × 35 mm (Antenna dimensions are not included)
Antenna:
- Wi-Fi: 3x 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
- LTE: 2x 4.0dBi omnidirectional detachable antennas
Tipo di montaggio: Desktop/Wall-Mounting/Rackmount
Max. Power Consumption: 64.9W with PoE Max; 19.8W without PoE

PRESTAZIONI
IPS Throughput:
- TCP: 229 Mbps
- UDP: 188 Mbps
DPI Throughput:
- TCP: 933 Mbps
- UDP: 927 Mbps
GRE:
- Unencrypted: 545.3Mbps
- Encrypted: 282.6Mbps
WireGuard VPN: 387.7Mbps
Sessioni concorrenti: 150,000
New Sessions /Second: 5,100
NAT (Static IP): 947.1Mbps / 940.1Mbps
NAT(DHCP): 949.2Mbps / 941.1Mbps
NAT(PPPoE): 942.6Mbps / 941.1Mbps
NAT (L2TP): 875.4Mbps / 892.0Mbps
NAT (PPTP): 881.2Mbps / 895.8Mbps
Throughput VPN IPsec:
- ESP-SHA1-AES256: 652.2Mbps
- ESP-SHA256-AES256: 654.4Mbps
- ESP-SHA384-AES256: 646.5Mbps
- ESP-SHA512-AES256: 670.5 Mbps
OpenVPN: 115.5Mbps
L2TP VPN Throughput:
- Unencrypted: 990.0Mbps
- Encrypted: 475.0Mbps
PPTP VPN Throughput:
- Unencrypted: 1177.9Mbps
- Encrypted: 177.4Mbps
SSL VPN Throughput: 122.5Mbps
66 Byte Packet Forwarding Rate: 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate: 81274 pps / 91275 pps

CARATTERISTICHE WIRELESS
Funzionalità avanzate:
- Seamless Roaming
- Mesh (with EAP that supports Mesh)
- OFDMA
- Beamforming
- MU-MIMO
- Rate Limit: Based on SSID/Client
- Airtime Fairness
- Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
- Multiple SSIDs: 16 in total (8 per radio)
Rete ospiti: Support

FUNZIONI DI BASE
Tipo connessione WAN:
- Static IP
- Dynamic IP
- PPPoE (supports MRU Configuration)
- PPTP
- L2TP
MAC clone: Modify WAN Address
DHCP:
- DHCP Server
- DHCPv6 PD Server (only in Standalone Mode)
- DHCP Options Customization
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
SMS: Receive / Send SMS
IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

FUNZIONALITÀ AVANZATE
Access Control: IP/Port/Protocol/Domain Name Filtering
Routing avanzato:
- Static Routing
- Policy Routing
- RIP
- OSPF
Bandwidth control: IP-Based Bandwidth Control
Load balance:
- Intelligent Load Balance
- Application Optimized Routing
- Link Backup(Timing, Failover)
- Online Detection
NAT:
- One-to-One NAT
- Multi-Net NAT
- Virtual Server
- Port Triggering
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
- UPnP
Session Limit: IP-Based Session Limit

VPN
GRE: Only in Standalone Mode
SSL VPN: 50 Tunnels
VPN IPsec:
- 100 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IPsec Failover
- IKE v1/v2
- MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
VPN PPTP:
- PPTP VPN Server
- PPTP VPN Client (10)â–³
- 50 Tunnels
- PPTP with MPPE Encryption
VPN L2TP:
- L2TP VPN Server
- L2TP VPN Client (10)â–³
- 50 Tunnels
- L2TP over IPSec
OpenVPN:
- OpenVPN Server
- OpenVPN Client (5)â–³
- 55 OpenVPN Tunnels
- ''Certificate + Account'' Mode
- Full Mode
WireGuard VPN: 20 Tunnels

AUTHENTICATION
Web Authentication:
- No Authentication
- Simple Password
- Hotspot (Local User / Voucher / SMS / Radius)
- External Radius Sever
- External Portal Sever
- LDAP

GESTIONE
Omada App: Yes
Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
Cloud Access: Yes.
Servizio: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Manutenzione:
- Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)
- NTP Synchronize
- Port Mirroring
- CLI (only in Standalone Mode)
- Syslog Support
Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller.
Management Features:
- Automatic Device Discovery
- Intelligent Ne2xrk Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
- ER706WP-4G
- Power Adapter
- Quick Installation Guide
Requisiti di sistema:
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
- MAC OS, NetWare, UNIX or Linux
Ambiente:
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
