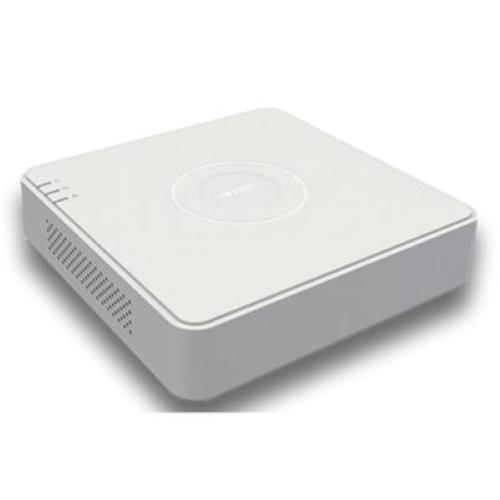

KIT NVR IP 4 CANALI HIKVISION HiLook IKS-2044BH-PH/ W(NO icl.HDD) Wi-Fi form.:H.265+/H.265/H.264+/H.264,DWDR,3D DNR,r Fino:30/09

External interface
Network interface: 1x RJ45 10/100 Mbps self-adaptive Ethernet interface
USB interface: Rear panel: 2 × USB 2.0

Video/Audio input/output
Video input
HDTVI, AHD, CVI, CVBS, IP

Recording
Encoding resolution:
- When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
- When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame rate (Main stream):
- When 1080p Lite mode not enabled:
- For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)
- For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
- For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps(P)/30fps(N)
- For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps(P)/30fps(N)
- When 1080p Lite mode enabled:
- 4 MP lite/3 MP@15fps
- 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps(P)/30fps(N)
Frame rate (Sub-stream): WD1/4CIF@12fps; CIF@25fps(P)/30fps(N)
Audio compression: G.711u

Video and Audio
IP video input: 2-ch (up to 6-ch), Up to 6 MP, H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input: 4-ch, BNC interface (1.0 Vp-p, 75 Ω)，supporting coaxitron connection
Audio input: 1-ch
Two-way audio: RCA (2.0 Vp-p, 1 KΩ)
VGA/HDMI output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI and VGA simultaneous output

Auxiliary interface
SATA: 1 SATA interface
Capacity: Up to 6 TB capacity for each disk

General
Operating Condition: -10 °C to 55 °C (14 °F to 131 °F), Humidity: 10% to 90%
Dimensions: 200(W) × 200(D) × 48(H) mm (7.9 × 7.9 × 1.9 inch)
Weight: ≤ 3.3 kg (7.3 lb)
