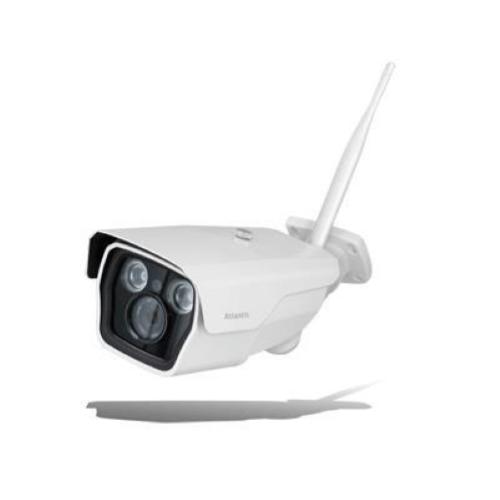

VIDEOCAMERA WI-FI +CAMHD ATLANTIS A14-PC7000-OUT1 Outdoor 1280x960p 25fps in H264-2led (30mt) x SmartPhone Android/Apple

Product Name
PlusCam HD Outdoor 7000

Code
A14-PC7000-OUT1

Wireless Interface
Up to 10 150Mbps (external 3dBi R-SMA Antenna)

LAN Interface
RJ 45 (Ethernet 10/100Mbps)

Audio Input
RC Audio IN

Audio Output
N/A

LED
2Led Array up to 30mt, with 10 level of intensity

Image Sensor
1/3'' CMOS Sensor

LENS
Fixed 4mm

Min Illumination
0Lux(IR ON)

Angle of View
61°

Resolution
1.3MP 1280x960

Video Compression
H.264/JPEG

Frame Rate
25fps ~ 30fps

Privacy Mask
4 Rectangle areas

Video Adjust
Contrast, Brightness,Saturation, Sharpness, Mirror (Horizontal, Vertical), Auto White Balance, SW WDR, Day/Night Mode (Always Color, Auto, B/W)

Video Overlay
Name and Date

Defog
Yes

Image Rotation
90°, 180°, 270°

Exposure
From 1/3 to 1/100000

Motion Detection
Support [up to 4 Areas, Sensitivity]

Alarm
App, E-Mail, Push Notication [Android, Apple]

2 Way Audio
Support

Local Storage
N/A

Maintenance
Scheduled Reboot

Streaming
Main (1280x720, 720x480, 352x288) and Sub (352x288)

Protocol
HTTP,TCP/IP,ICMP,UDP,SMTP,FTP,DHCP,DNS,PPPOE

Onvif/RTSP
2.4/Yes

Browser
Chrome

Connection
32 CH

User Permission
Up to 13 users and three level authority [Administrator, User, Guest]

Micro SD Slot
N/A

Waterproof
IP66

Advanced Features
Security7000 helps you rest easy by keeping watch on what is important to you;.

Certifications
CE (Europe)

Dimensions (WxHxD)(mm)
107.4x148x270.2

Weight
900g

Temperature Range
-10°C ~ +50°C

Humidity Range
20% ~ 85%

Power Consumption
Day: <3W (DC 12V)
Night: <6W (DC 12V)

System Requirements
• iPhone 5/5C/5S/6/6plus/6S/6Splus or iPad (App Store)
• Android (Full access to Play Store)
• 3G Connection
• Internet Connection

Optional System Requirements (for Security7000 on a PC)
• TCP/IP protocol must be installed on each PC
• Web browser, such as Microsoft Internet Explorer 9.0 or later, FireFox 12 or later, Chrome
• Pentium 4 1800MHz (or equivalent AMD) with 512MB
• Graphic Card: 128 MB RAM graphic cards(or equivalent on-board graphic cards)
• Windows XP, Vista, 7 , 8, 10
