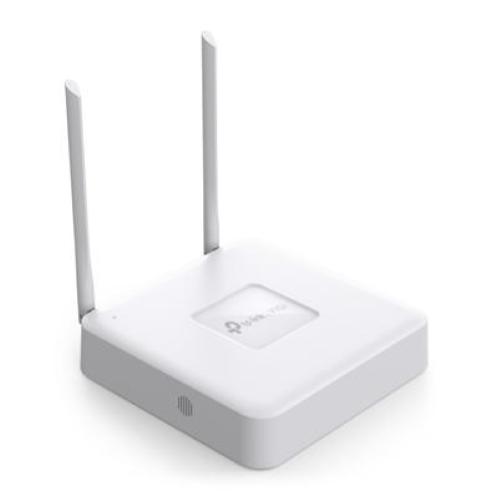

NVR IP TP-LINK VIGI NVR1108H-W 8canali -usc.video HDMI 4K - risol. fino 8MP-1P SATA fino 10TB 1P WAN 100Mbps 1P LAN 100Mbps-Wi-F

VIDEO & AUDIO
IP Video Input: 8-Channel
Incoming Bandwidth: 80 Mbps
Outgoing Bandwidth: 60 Mbps
HDMI Output Resolution: 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution: 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode: HDMI/VGA Simultaneous Output
Multi-View Display: 1/4/6/8

DECODING
Audio Compression: G.711A/G.711U/G.726
Video Compression: H.265+/H.265/ H.264+/H.264
Record Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback: 8-Channel
Capability:
- 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
- 30fps: 4-ch @ 3MP, 2-ch @ 5MP

RECORD MANAGEMENT
Record Mode:
- Manual Recording
- Scheduling Recording
- Motion Detection Recording
Playback Mode:
- Instant Playback
- Regular Playback
- Tag Playback
- Event Playback
Backup Mode:
- Regular Backup
- Video Clip Backup
Playback Function:
- Play
- Pause
- Stop
- Fast Forward
- Fast Backward
- Play By Frame
- Video Clip
- Export Clip
- Lock Recording
- Audio On/Off

NETWORK
Protocol: UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access: Android, iOS
Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
Interoperability: ONVIF Profile S/T/G, CGI

WIRELESS
Standards: IEEE 802.11b/g/n
WiFi Channels:
- UN: 1-13
- US: 1-11
Wireless Name:
- SSID Configuration
- Radio
Network Switch: Yes
Frequenza: 2.4 GHz
Auto Wireless Channel: N/A
Wireless Statistics: N/A
Throughput Monitoring: N/A
Radio Bandwidth:
- Auto: Yes
- 20M: Yes
- 40M: Yes
Wireless Rate: 300Mbps(802.11n), 2 × 2 MIMO
Wireless Security: WPA-PSK/WPA2-PSK

EXTERNAL INTERFACE
Network Interface:
- 1× RJ-45 10/100 Mbps Self-Adaptive WAN/LAN Ethernet Interface
- 1× RJ-45 10/100 Mbps Self-Adaptive LAN Ethernet Interface
USB Interface: 2× USB 2.0
Audio Interface: 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out: N/A
Serial Interface: N/A
Power: 1× DC Jack
Reset Button: 1
Speaker: 1; Real-time Audio Output without Needing Peripherals.
eSATA: N/A
HDMI: 1
VGA: 1

HARD DISK
SATA: 1 SATA Interface
Capacity: Up to 10 TB Capacity for Each HDD

ALARM
General Alarm:
- Motion Detection
- Video Tampering
- Scene Change Detection
- Line-Crossing Detection
- Intrusion Detection
- Region Entering Detection
- Region Exiting Detection
- Loitering Detection
- Object Abandoned/Removal Detection
- Vehicle Detection
- Human Detection
- Abnormal Sound Detection
- Smart Frame
Note: The alarm function requires the use of a camera.
Anomaly Alarm:
- Video Loss
- Offline and IP Conflict
- Disk Exception
- Login Exception
Note: The alarm function requires the use of a camera.
Alarm Linkage:
- Recording
- White Light Alarm
- Log
- Audible Alarm
Note: The alarm function requires the use of a camera.

GENERALE
Storage Temperature: -40–70 °C
Storage Humidity: 10%~90% RH Non-Condensing
Contenuto della confezione:
- VIGI Network Video Recorder
- Power Adapter
- HDD Screws
- Mouse
- Quick Installation Guide
Working Temperature:
- NVR: -10–55 °C
- Power Adapter: 0–40 °C
Working Humidity: 10%~90% RH Non-Condensing
Dimensioni ( L x P x A ): Excluding Antennas: 7.9 × 7.9 × 1.7 in (200.3 × 200.3 × 43 mm)
Alimentazione esterna: DC 12V/2A
Net Weight: 0.5 kg
Gross Weight: 1.0 kg
Power Consumption:
- 5.7 W (Without Disk)
- 16.3 W (Without Disk)
Antenna:
- Quantity: 2
- Type: 2.4GHz Welded Non-detachable Antenna
- Gain: 5.3dBi
- Radio Frequency Transmit Power: 16dBm
- Length: 198.8 mm for Long Side and 189 mm for Short Side
Certifications: BSMI, CE, HDMI, JRF, KC, NCC, NTRA, VCCI
