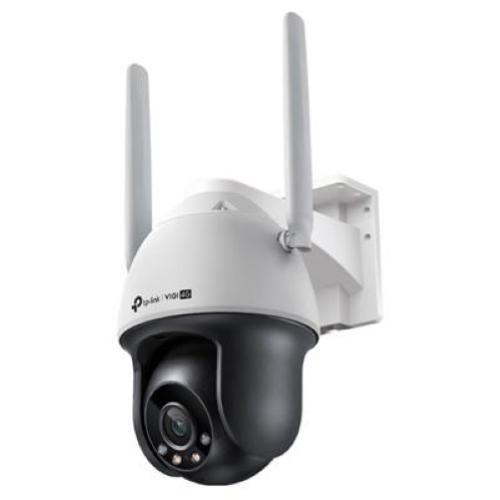

VIDEOCAMERA TP-LINK 4G LTE VIGI C540-4G(4mm) Pan/Tilt a colori-CMOS a sc.prog.1/3" ob.fisso 4MP-micr. int.,slot micro-SD, IP66

CAMERA
Sensore di immagine: 1/3.06” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Luminosità minima: 0.005 Lux; 0 Lux with IR/White Light
Meccanismo giorno/notte: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto

LENS
Type: Fixed Focal Lens
Focal Length: 4 mm
Aperture: F1.6
FOV: Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
Lens Mount: M120.5
DORI Distance:
- Detect: 80 m (262 ft)
- Observe: 33 m (109 ft)
- Recognize: 16 m (52 ft)
- Identify: 8 m (26 ft)

PTZ
Angolo pan/tilt: Pan: 0° to 348°, Tilt: 0° to 120°
Velocità pan/tilt:
- Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s
- Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s
Manual Control Speed: Configurable from 8° to 35°/s
Presets: 300
Patrol Scan: 8 patrols, up to 8 presets for each patrol
Power-off Memory: Yes - Auto restore to previous PT and lens status after power failure
Park Action: Yes - Preset, Patrol Scan
3D Positioning: Yes
Angle Adjustment (Manual)
Range:
- Pan: 0° to 348°
- Tilt: 0° to 120°

ILLUMINATOR
IR LED:
- Quantity: 2
- Range: 30m
- Wavelength: 850nm
White LED:
- Quantity: 2
- Range: 30m
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution: 2560 X 1440
Main Stream:
- Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps // 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
- Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps // 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 640x480, 352x288, 320x240
Bit Rate Control: CBR, VBR
Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
H.264 Type: Main Profile/High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate:
- Main Stream: 256 Kbps to 3 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps

Image Settings:
- Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure, WDR,
- White Balance
- Prevent Overexposure to Infrared Light
- HLC Adjustable by Client Software
- Rotation (90°/270°)
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: DWDR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes

AUDIO
Comunicazione audio: Two-Way Audio
Ingresso audio: Yes
Uscita audio: Yes
Codec audio: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)

NETWORK
Protocol:
- TCP/IP
- UDP
- ICMP
- HTTP
- HTTPS
- DHCP
- DNS
- RTSP
- NTP
- UPnP UDP
- SSL/TLS
- FTP/SFTP
- RTP
- IPv4
- ARP
- SMTP
ONVIF: Yes
API: Open Network Video Interface (Profile S/G)
Simultaneous Live View: 2 Main Streams & 2 Sub-Streams
Client: VIGI App, VIGI Security Manager, Web UI
Web Browser:
- Google Chrome® 57 and above
- Firefox® 52 and above
- Safari® 11 and above
- Microsoft® Edge 91 and above
Cloud: Yes
Sicurezza: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

4G
Standard: LTE-TDD/LTE-FDD/WCDMA
SIM Type: Nano SIM
Category: 4
Frequency:
- LTE-FDD: B 1/3/5/7/8/20/28
- LTE-TDD: B 38/40/41
- WCDMA: B 1/5/8
Uplink and Download Data Rate: Uplink: 50 Mbps, Downlink: 150 Mbps
Antenna:
- Quantity: 2
- Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna
- Gain:
- Ant1: 0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
- Ant2: 0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz

ALLARME E GESTIONE EVENTO
Smart Event:
- Human & Vehicle Classification
- Intrusion Detection
- Line-Crossing Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned Detection
- Object Removal Detection
- People Detection
- Vehicle Detection
Basic Event:
- Motion Detection
- Video Tampering Detection
- Exception (Illegal Login)
Alarm Linkage:
- Memory Card Video Recording
- Message Push
- Audible Warning
- White Light Flashing
Linkage Method: N/A
Output Notification: Message Push

INTERFACCE
Interfaccia di rete: 1x RJ45 10/100M Self-Adaptive Ethernet Port
Allarme: N/A
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Nano-SIM Card Slot: Yes
Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker: Yes
Audio: N/A

GENERALE
Operating Temperature: -30–60 °C
Storage Temperature: -40–60 °C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)
Contenuto della confezione:
- VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
- Power Adapter
Material: Plastic
Net Weight: 0.69 Kg
Gross Weight: 1.16 Kg
Power Supply: 12V DC/1A, 5.5mm Coaxial Power Plug
Antenna:
- Quantity: 2
- Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna
- Gain:
- Ant1: 0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
- Ant2: 0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Protection: IP66 Weatherproof
Product Dimensions (L x W x H): 120 × 182 × 201 mm (excluding antennas)
Certifications: CE, RCM, BSMI, RoHS, NCC
