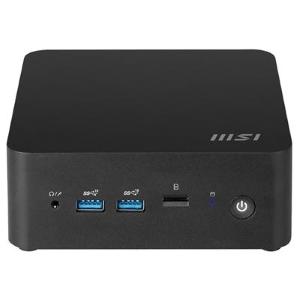

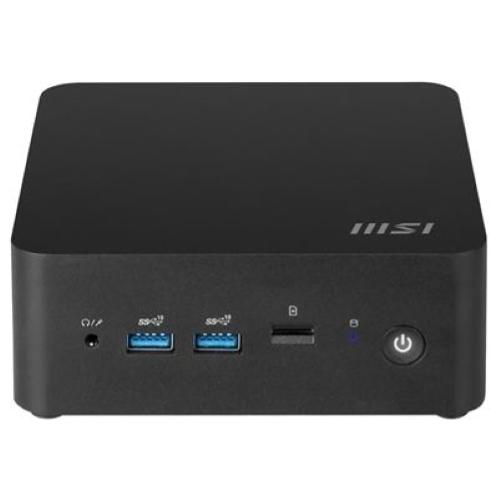

PC MSI MINI -1LT CUBI NUC BAREBONE 1MG-013BEU Intel Core 5-120U 2xm.2SSD 1x2,5"HDD 2xDDR5(max 64GB) 2xLAN WiFi BT HDMI USB VESA

Operating System
No OS

CPU
Intel® Core 5 processor 120U (12M Cache, 1.40 GHz up to 5.00 GHz)

Chipset
Intel® SoC

Storage
1x M.2 2280 SSD (PCIE, factory pre installed)
1x M.2 2242 SSD (PCIE, free slot)
1x 2.5” HDD /SSD

System Memory
2x DDR5 up to 5200MHz SO DIMMs, up to 64GB

Graphics
Intel Graphics

Sound
Realtek® ALC256

I/O (Front)
2x USB 10Gbps Type-A
1x Mic in / Headphone out combo
1x Micro-SD Card Reader

I/O (Rear)
2x Thunderbolt 4 (DP 1.4 alt mode up to 4K@60Hz / PD out 15W / One of TBT supports PD in)
2x USB 10Gbps Type-A
2x RJ-45
2x HDMI out (supports 4K @60Hz as specified in HDMI)

I/O (Side)
1x Kensington Lock
1x External Power Switch Pin Header

TPM
dTPM 2.0

Wireless LAN
Intel WiFi 6E AX211

Bluetooth
5.3

LAN
2x Intel® I226V

AC Adapter / PSU
120W

Cooling System
Fan Cooler

Volume
0.826 Liter (1.75 pint)

Dimension (WxDxH)
135.60 x 132.50 x 50.10 mm (5.34 x 5.22 x 1.97 inch)

Weight (N.W./ G.W.)
0.6257 kg / 1.439 kg

VESA
75 x 75 mm and 100 x 100 mm

Kensington Lock
Support

External Power Switch
Optional

Accessory
1x Quick Guide
1x Power Cord
