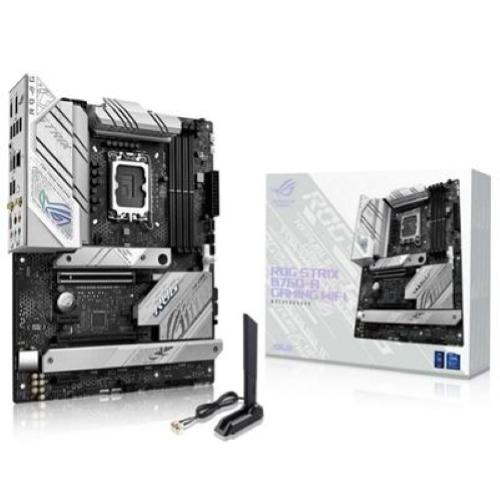

MB ASUS ROG STRIX B760-A GAMING WIFI B760 LGA1700 4xDDR5DC-7800o.c. 1xPCIe5.0x16 DP HDMI 4xSATA3R M.2 WiFi ATX 90MB1E Fino:02/05

CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® B760 Chipset

Memory
4 x DIMM slots, Max. 192GB, DDR5 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Graphics
1 x DisplayPort
1 x HDMI port
Supports max. 4K 60Hz as specified in DisplayPort 1.4
Supports 4K 60Hz as specified in HDMI 2.1

Expansion Slots
Intel® 13th & 12th Gen Processors:
- 1 x PCIe 5.0 x16 slot
Intel® B760 Chipset:
- 1 x PCIe 3.0 x16 slot (supports x4 mode)
- 2 x PCIe 3.0 x1 slots

Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors:
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset:
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3

USB
Rear USB (Total 9 ports):
- 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)
- 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
- 3 x USB 3.2 Gen 1 (5G) port (2 x Type-A, 1 x USB Type-C®)
- 4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports):
- 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features:
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors
Fan and Cooling related:
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
Power related:
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
Storage related:
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
USB:
- 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® )
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
Miscellaneous:
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x 20-5 pin System Panel header
- 1 x Thermal Sensor header
- 1 x Thunderbolt™ (USB4®) header

Special Features
Extreme Engine Digi+:
- 5K Black Metallic Capacitors
ASUS Q-Design:
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution:
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY:
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync:
- Aura RGB header
- Addressable Gen 2 headers

Software Features
ROG Exclusive Software:
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
ASUS Exclusive Software:
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
- Performance and Power Saving Utility
AI Suite 3
- DIGI+ VRM
- PC Cleaner
MyAsus
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers
WinRAR
UEFI BIOS:
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME

Accessories
Cables:
- 2 x SATA 6Gb/s cables
Additional Cooling Kit:
- 1 x Thermal pad for M.2
Miscellaneous:
- 1 x ASUS Wi-Fi moving antennas
- 1 x Cable ties package
- 1 x M.2 Q-Latch package
- 1 x ROG Strix stickers
- 1 x ROG Strix thank you card
- 1 x M.2 Rubber Packages
Documentation:
- 1 x User guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
