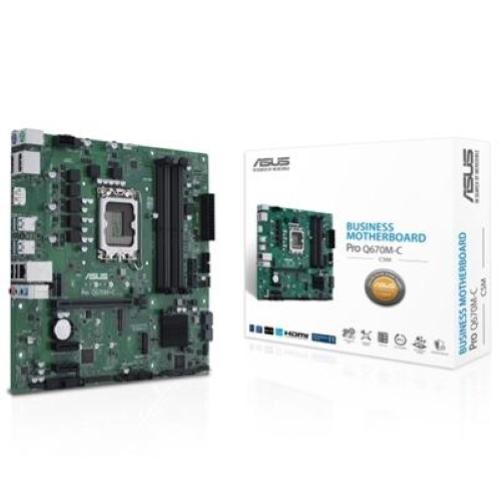

MB ASUS PRO Q670M-C-CSM Q670 LGA1700 4xDDR5DC-4800 2xDP HDMI 1xPCIe4.0x16 6xSATA3r M.2 GBLAN USB3.2 mATX 90MB19E0-M2EAYC

CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® Q670 Chipset

Memory
4 x DIMM, Max. 192GB, Support for DDR5 5600/5400/5200/5000/4800 memory modules
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Support for ECC Un-buffered DIMM memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM memory modules
Optimem II

Graphics
2 x DisplayPort
1 x HDMI®

Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen):
- 1 x PCIe 4.0/3.0 x16 slot
Intel® Q670 Chipset:
- 2 x PCIe 3.0 x1 slots

Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® Core™ Processors (14th & 13th & 12th Gen):
- M.2_1 slot (Key M), type 2242/2260/2280(support PCIe 4.0 x4 mode)
Intel® Q670 Chipset:
- M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
- 6 x SATA 6Gb/s ports

Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)

USB
Rear USB (Total 6 ports):
- 4 x USB 3.2 Gen 2 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports):
- 1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback ''

Back Panel I/O Ports
4 x USB 3.2 Gen 2 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
2 x DisplayPort
1 x HDMI® port
3 x Audio jacks
1 x Intel® 1Gb Ethernet
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port

Internal I/O Connectors
Fan and cooling related:
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
Power related:
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
Storage related:
- 2 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
USB:
- 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous:
- 1 x Clear CMOS header
- 1 x Chassis Intrude header
- 2 x COM Port headers
- 1 x Front Panel Audio header (AAFP)
- 1 x COM debug header
- 1 x DIS ME jumper
- 1 x LPT header
- 1 x Mono-out header(with Amp IC)
- 1 x M.2 slot (Key E)
- 1 x Speaker header
- 1 x 10-1 System Panel header

Special Features
ASUS EZ DIY:
- Box Headers
Bespoke Motherboard Design & Business Focused Features:
- ASUS Boot Defender
- Q-LED Core
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection
TPM 2.0 IC onboard

Software Features
ASUS Exclusive Software
IT Management software supported:
- ASUS Control Center Express(ACCE)

BIOS
256 MB Flash ROM

Manageability
WOL by PME, PXE

Accessories
Cables:
- 2 x SATA 6Gb/s cables
Miscellaneous:
- 1 x I/O Shield
- 1 x M.2 SSD screw package
- 1 x M.2 Key E screw package
Installation Media:
- 1 x Support DVD
Documentation:
- 1 x ACC Express Activation Key Card
- 1 x User guide

Operating System
Windows 11, Windows 10 64-bit

Form Factor
microATX
24.4cm x 24.4cm

Manageability
WOL by PME, PXE
