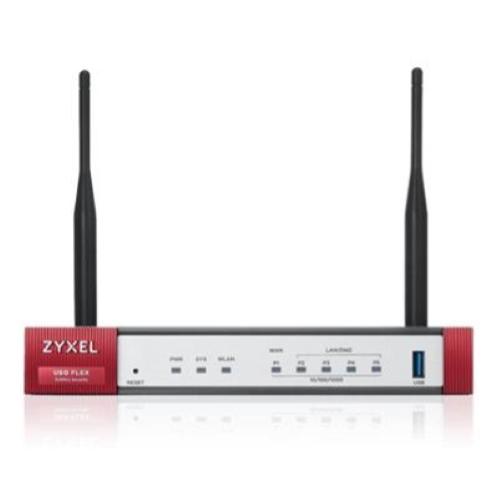

FIREWALL ZYXEL USGFLEX100AX-EU0101F 3P LAN/DMZ 1P WAN 1P OTP 1P USB -WiFi AX1800Mbps- VPN:40 IPSec/L2TP-30 SSL

Hardware Specifications
WiFi standard: 802.11 ax/ac/n/g/b/a
10/100/1000 Mbps RJ-45 ports:
- 4 x LAN/DMZ
- 1 x WAN
USB 3.0 ports: 1
Console port: RJ45
Rack-mountable: No
Fanless: Yes

System Capacity & Performance
SPI firewall throughput (Mbps): 900
VPN throughput (Mbps): 270
VPN IMIX Throughput (Mbps): 100
IPS throughput (Mbps): 540
Anti-Malware throughput (Mbps): 360
UTM throughput (Anti-malware & IPS, Mbps): 360
Max. TCP concurrent sessions: 300,000
Recommended gateway-to-gateway IPsec VPN tunnels: 20
Max. concurrent IPsec VPN tunnels: 50
Concurrent SSL VPN users: 30
VLAN interface: 8

Wireless Specifications
Standard compliance: 802.11 ax/ac/n/g/b/a
Wireless frequency: 2.4 / 5 GHz
Radio: 2
SSID number: 4
No. of antenna: 2 detachable antennas
Antenna gain: 3dbi @2.4GHz/5GHz
Data rate:
- 2.4GHz: up to 600Mbps
- 5GHz: up to 1200Mbps

Key Features
Security Service:
- Sandboxing: Yes
- Reputation Filter: Yes
- IPS: Yes
- Application Patrol: Yes
- Email Security: Yes
- Web filtering: Yes
- SecuReporter: Yes
- Collaborative Detection & Response: Yes
- SSL (HTTPS) Inspection: Yes
- Geo Enforcer: Yes
- 2-Factor Authentication: Yes
- Device Insight: Yes
- Security Profile Sync: Yes
VPN Features:
- VPN: IKEv2, IPSec, SSL, L2TP/IPSec
- Microsoft Azure: Yes
- Amazon VPC: Yes
WLAN Management:
- Default Number of Managed AP: 8
- Recommend max. AP in 1 AP Group: 10
- Secure WiFi Service: Yes
- Maximum No. of Tunnel-Mode AP: 6
- Maximum No. of Managed AP: 24
Management & Connectivity:
- Nebula Cloud Mode: Yes
- Nebula Cloud Monitoring Mode: Yes
- Device HA Pro: -
- Link Aggregation (LAG): -
- Hotspot Management: -
- Ticket printer support/ Support Qty (max.): -
- Concurrent device logins (default/max.): 64

Power Requirements
Power input: 12V DC, 2.5A max.
Max. power consumption (Watt Max.): 24.3
Heat dissipation (BTU/hr): 55.37

Physical Specifications
Item:
- Dimensions (WxDxH): 216 x 149.28 x 33 mm
- Weight: 1 kg
Packing:
- Dimensions (WxDxH): 284 x 190 x 100 mm
- Weight: 1.53 kg
Included accessories:
- Power adapter with plug
- RJ-45 - RS-232 cable for console connection
- Antenna

Environmental Specifications
Operating:
- Temperature: 0°C to 40°C
- Humidity: 10% to 90% (non-condensing)
Storage:
- Temperature: -40°C to 70°C
- Humidity: 10% to 90%(non-condensing)
MTBF (hr): 766,228.2

Certifications
EMC:
- FCC Part 15 (Class B)
- IC EMC (Class B)
- CE EMC (Class B)
- RCM (Class B)
- BSMI
Safety:
- LVD (EN62368-1)
- BSMI
