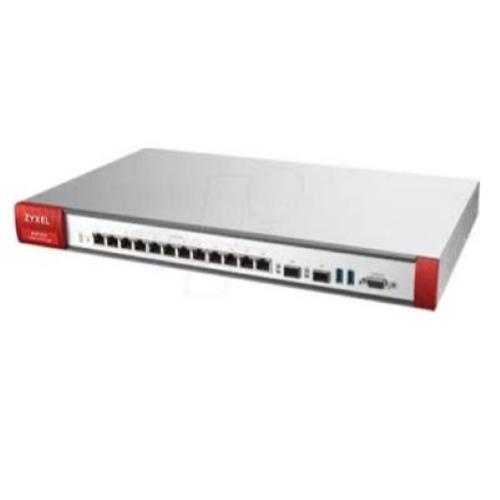

FIREWALL ATP ZYXEL ATP700-EU0102F 12P OTP,2P SFP- VPN: 1000 IPsec/L2TP, 150 SSL - Include 1 Anno Gold Security Pack

Hardware Specifications
Wireless standard: -
Interface: 12 (Configurable), 2x SFP (Configurable)
USB3.0 ports: 2
Console port: DB9
Rack-mountable: Yes
Fanless: -

System Capacity & Performance
SPI firewall throughput (Mbps): 6,000
VPN throughput (Mbps): 1,200
IPS throughput (Mbps): 2,200
Anti-malware throughput (Mbps): 1,600
UTM throughput (AV and IDP): 1,500
Max. TCP concurrent sessions: 1,600,000
Max. concurrent IPsec VPN tunnels: 1,000
Recommended gateway-to-gateway IPsec VPN tunnels: 300
Concurrent SSL VPN users: 150
VLAN interface: 128

Key Features
Security Features:
- Sandboxing: Yes
- Web Filtering: Yes
- Application Patrol: Yes
- Anti-Malware: Yes
- IPS: Yes
- Reputation Filter: Yes
- Geo Enforcer: Yes
- SecuReporter Premium: Yes
- Collaborative Detection & Response: Yes
- Device Insight: Yes
- Security Profile Synchronize (SPS): Yes
- SSL (HTTPS) Inspection: Yes
- 2-Factor Authentication: Yes
VPN Features:
- VPN: IKEv2, IPSec, SSL, L2TP/IPSec
- Microsoft Azure: Yes
- Amazon VPC: Yes
WLAN Management:
- Default number of managed AP: 8
- Recommend max. AP in 1 AP Group: 200
- Secure WiFi Service: Yes
- Maximum Number of Tunnel-Mode AP: 66
- Maximum Number of Managed AP: 264
Connectivity Management:
- Nebula Cloud Managed Mode: Yes
- Device HA Pro: Yes
- Link Aggregation (LAG): Yes
- Concurrent devices logins (max.): 1500

Power Requirements
Power input: 100-240V AC, 50/60Hz, 2.5A max.
Max. power consumption (watt): 46
Heat dissipation (BTU/hr): 120.1

Physical Specifications
Item:
- Dimensions (WxDxH)(mm/in.): 430 x 250 x 44/16.93 x 9.84 x 1.73
- Weight (kg/lb.): 3.3/7.28
Packing:
- Dimensions (WxDxH)(mm/in.): 519 x 392 x 163/20.43 x 15.43 x 6.42
- Weight (kg/lb.): 4.8/10.58
Included accessories: Power adapter, Rack mounting kit

Environmental Specifications
Operating environment:
- Temperature: 0°C to 40°C/32°F to 104°F
- Humidity: 10% to 90% (non-condensing)
Storage environment:
- Temperature: -30°C to 70°C/-22°F to 158°F
- Humidity: 10% to 90% (non-condensing)
MTBF (hr): 947,736
Acoustic noise: 25.3 dBA on < 25°C Operating Temperature, 46.2 dBA on full FAN speed.

Certifications
EMC:
- FCC Part 15 (Class A)
- CE EMC (Class A)
- C-Tick (Class A)
- BSMI
Safety:
- LVD (EN60950-1)
- BSMI
