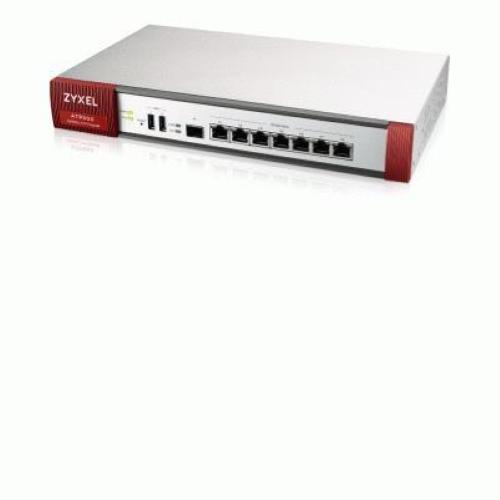

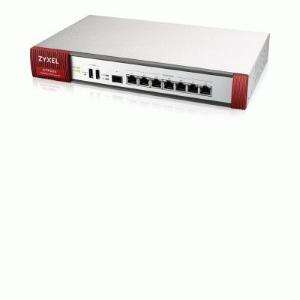

FIREWALL ATP ZYXEL ATP500-EU0102F 7P OTP,1P SFP- VPN: 200IPsec/L2TP, 150 SSL - Include 1 Anno Gold Security Pack

Hardware Specifications
Interface: 7 (Configurable), 1 x SFP
USB 3.0 ports: 2
Console port: DB9
Rack-mountable: Yes
Fanless: -

System Capacity & Performance
SPI firewall throughput (Mbps): 2,600
VPN throughput (Mbps): 900
IPS throughput (Mbps): 1,700
Anti-malware throughput (Mbps): 900
UTM throughput (AV and IDP): 890
Max. TCP concurrent sessions: 1,000,000
Max. concurrent IPsec VPN tunnels: 300
Recommended gateway-to-gateway IPsec VPN tunnels: 150
Concurrent SSL VPN users: 150
VLAN interface: 64

Key Features
Security Features:
- Sandboxing: Yes
- Web Filtering: Yes
- Application Patrol: Yes
- Anti-Malware: Yes
- IPS: Yes
- Reputation Filter: Yes
- Geo Enforcer: Yes
- SecuReporter Premium: Yes
- Collaborative Detection & Response: Yes
- Device Insight: Yes
- Security Profile Synchronize (SPS): Yes
- SSL (HTTPS) Inspection: Yes
- 2-Factor Authentication: Yes
VPN Features:
- VPN: IKEv2, IPSec, SSL, L2TP/IPSec
- Microsoft Azure: Yes
- Amazon VPC: Yes
WLAN Management:
- Default number of managed AP: 8
- Recommend max. AP in 1 AP Group: 60
- Secure WiFi Service: Yes
- Maximum Number of Tunnel-Mode AP: 18
- Maximum Number of Managed AP: 72
Connectivity Management:
- Nebula Cloud Managed Mode: Yes
- Device HA Pro: Yes
- Link Aggregation (LAG): Yes
- Concurrent devices logins (max.): 300

Power Requirements
Power input: 12V DC, 4.17A
Max. power consumption (watt): 24.1
Heat dissipation (BTU/hr): 82.23

Physical Specifications
Item:
- Dimensions (WxDxH)(mm/in.): 300 x 188 x 44/11.81 x 7.4 x 1.73
- Weight (kg/lb.): 1.65/3.64
Packing:
- Dimensions (WxDxH)(mm/in.): 351 x 152 x 245/13.82 x 5.98 x 9.65
- Weight (kg/lb.): 2.83/6.24
Included accessories: Power adapter, Power cord, Rack mounting kit

Environmental Specifications
Operating environment:
- Temperature: 0°C to 40°C/32°F to 104°F
- Humidity: 10% to 90% (non-condensing)
Storage environment:
- Temperature: -30°C to 70°C/-22°F to 158°F
- Humidity: 10% to 90% (non-condensing)
MTBF (hr): 529,688.2
Acoustic noise: 24.5 dBA on < 25°C operating temperature, 41.5 dBA on full FAN speed.

Certifications
EMC: FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI
Safety: LVD, (EN60950-1), BSMI
