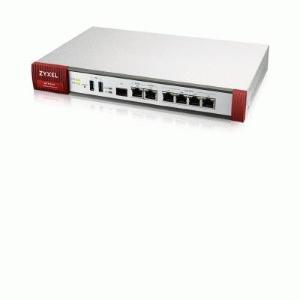

FIREWALL ATP ZYXEL ATP200-EU0102F 4P LAN/DMZ ,2P WAN,1P SFP-VPN: 40IPsec/L2TP, 60 SSL - Include 1 Anno Gold Security Fino:11/10

Descrizione

Hardware Specifications
Wireless standard: -
Interface: 4 x LAN/DMZ, 2 x WAN, 1 x SFP
USB3.0 ports: 2
Console port: DB9
Rack-mountable: Yes
Fanless: Yes

System Capacity & Performance
SPI firewall throughput (Mbps): 2,000
VPN throughput (Mbps): 500
IPS throughput (Mbps): 1,200
Anti-malware throughput (Mbps): 630
UTM throughput (AV and IDP): 600
Max. TCP concurrent sessions: 600,000
Max. concurrent IPsec VPN tunnels: 100
Recommended gateway-to-gateway IPsec VPN tunnels: 50
Concurrent SSL VPN users: 60
VLAN interface: 16

Key Features
Security Features:
- Sandboxing: Yes
- Web Filtering: Yes
- Application Patrol: Yes
- Anti-Malware: Yes
- IPS: Yes
- Reputation Filter: Yes
- Geo Enforcer: Yes
- SecuReporter Premium: Yes
- Collaborative Detection & Response: Yes
- Device Insight: Yes
- Security Profile Synchronize (SPS): Yes
- SSL (HTTPS) Inspection: Yes
- 2-Factor Authentication: Yes
VPN Features:
- VPN: IKEv2, IPSec, SSL, L2TP/IPSec
- Microsoft Azure: Yes
- Amazon VPC: Yes
WLAN Management:
- Default number of managed AP: 8
- Recommend max. AP in 1 AP Group: 20
- Secure WiFi Service: Yes
- Maximum Number of Tunnel-Mode AP: 10
- Maximum Number of Managed AP: 40
Connectivity Management:
- Nebula Cloud Managed Mode: Yes
- Device HA Pro: -
- Link Aggregation (LAG): -
- Concurrent devices logins (max.): 200

Power Requirements
Power input: 12V DC, 2.5A max.
Max. power consumption (watt): 13.3
Heat dissipation (BTU/hr): 45.38

Physical Specifications
Item:
- Dimensions (WxDxH)(mm/in.): 272 x 187 x 36/10.7 x 7.36 x 1.42
- Weight (kg/lb.): 1.4/3.09
Packing:
- Dimensions (WxDxH)(mm/in.): 427 x 247 x 73/16.81 x 9.72 x 2.87
- Weight (kg/lb.): 2.42/5.34
Included accessories: Power adapter, Rack mounting kit

Environmental Specifications
Operating environment:
- Temperature: 0°C to 40°C/32°F to 104°F
- Humidity: 10% to 90% (non-condensing)
Storage environment:
- Temperature: -30°C to 70°C/-22°F to 158°F
- Humidity: 10% to 90% (non-condensing)
MTBF (hr): 529,688.2
Acoustic noise: -

Certifications
EMC:
- FCC Part 15 (Class B)
- CE EMC (Class B)
- C-Tick (Class B)
- BSMI
Safety:
- LVD (EN60950-1)
- BSMI
