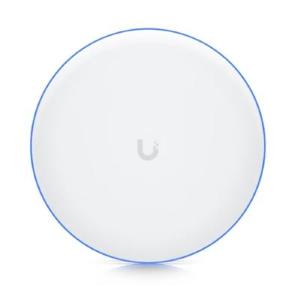

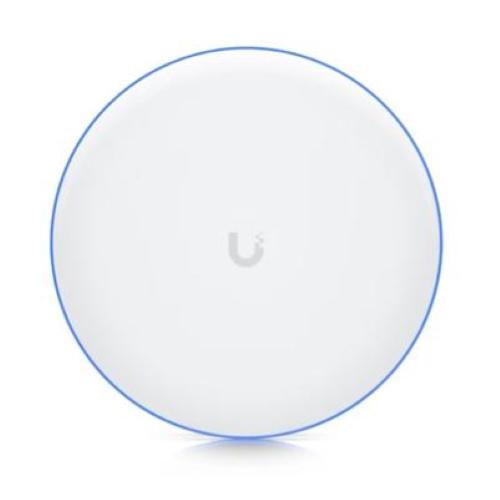

WIRELESS PTP BRIDGE UBIQUITI UBB-XG-EU UNIFI WIFI LEGACY 60GHZ 1P 10G SFP+ 1P GBE POE++

Overview
Dimensions: Ø191.8 × 59 mm (Ø7.6 × 2.3'')
WiFi Standard: WiFi 5
Spatial Streams: 2
Coverage Area: 500 m (1,640 ft)
Mounting Locations: Wall, pole
Weatherproofing: IPX6
Power Method:
- PoE++
- Passive PoE

Performance
MIMO:
- 5 GHz: 2 × 2 (DL MU-MIMO)
Max. Data Rate:
- 60 GHz: 6 Gbps
- 5 GHz: 866.6 Mbps (BW80)
Antenna Gain:
- 60 GHz: 21 dBi
- 5 GHz: 14 dBi
- 2.4 GHz: 2 dBi (BLE)
Max. TX Power:
- 60 GHz: 16 dBm
- 5 GHz: 23 dBm
Supported Data Rates:
- 802.11ac (WiFi 5): 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security: WPA2 AES

Hardware
Max. Power Consumption: 29W
Includes PoE Adapter: âœ"
Supported Voltage Range: 48V DC ±10%
Networking Interface:
- (1) GbE RJ45 port
- (1) 1/10G SFP+ port
Weight:
- Device: 1.7 kg (3.8 lb)
- With mount: 2.9 kg (6.3 lb)
Operating Modes: PtP
Wind Loading: 56 N at 200 km/h (12.6 lbf at 125 mph)
Pole Mount Diameter: 1–2.5'' (25–63.5 mm)
Management: Ethernet, Bluetooth
Channel Bandwidth:
- Main radio (60 GHz): 2,160 / 4,320 MHz
- Backup radio (5 GHz): HT 20/40, VHT 20/40/80 MHz
Enclosure Material: Aluminum alloy, UV-resistant polycarbonate
Mount Material: Stainless steel
Button: (1) Factory-reset
LEDs: System R/G/B
NDAA Compliant: âœ"
Certifications: CE, FCC, IC, Terragraph
Operating Frequency:
- Main radio (60 GHz): 57–66 GHz
- Backup radio (5 GHz)
- US/CA
- U-NII-1: 5150–5250 MHz
- U-NII-2A: 5250–5350 MHz
- U-NII-2C: 5470–5725 MHz
- U-NII-3: 5725–5850 MHz
Worldwide: 5150–5725 MHz
Bluetooth: 2400–2483.5 MHz

Ambient Operating Temperature
-40 to 55 °C (-40 to 131 °F)
Ambient Operating Humidity: 5 to 95% noncondensing
