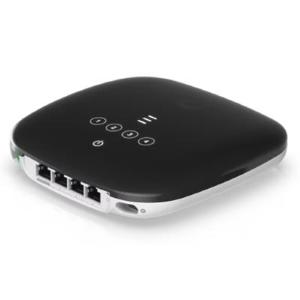

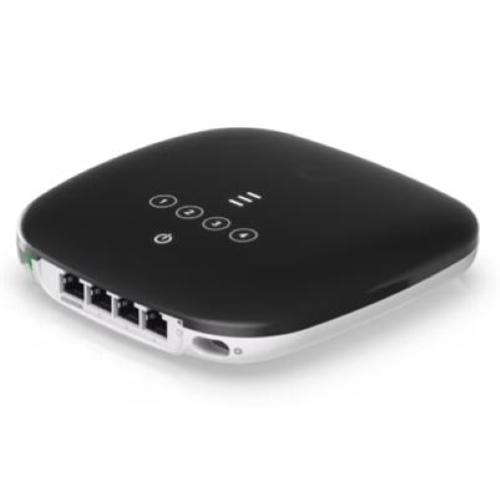

WIRELESS CPE GPON WIFI6 UBIQUITI UF-WIFI6-EU UFIBER NERO Fino:23/10

Mechanical
Dimensions: 140.8 x 141.5 x 31.7 mm (5.5 x 5.6 x 1.3'')
Weight: 415 g (14.6 oz)
Enclosure material: UV-stabilized polycarbonate (PC110U)

Hardware
Networking interface:
- (1) SC/APC, ITU-G.984 GPON WAN port
- (4) GbE RJ45 LAN ports
WiFi: 802.11ax 5/2.4 GHz channels
Management interface:
- Ethernet In-Band
- PON
Power method:
- USB-C 5V DC, 3A
- 24V passive PoE, 0.5A
Power supply:
- 5V DC, 3A power adapter, 1.5 m cord (included)
- Passive PoE 2-pair (4, 5+; 7, 8-)
Supported voltage range:
- 10–30V DC (passive PoE)
- 5V DC (adapter)
Max. power consumption: 11W
Total non-blocking line rate:
- Downstream: 2.488 Gbps
- Upstream: 1.244 Gbps
Normal range of optical module:
- TX: 0.5 to 5 dBm
- RX: -8 to -28 dBm
Max. WiFi TX power:
- 2.4 GHz: 20 dBm
- 5 GHz: 20 dBm
MIMO:
- 2.4 GHz: 2 x 2
- 5 GHz: 2 x 2
Max. WiFi radio rate:
- 2.4 GHz: 300 Mbps
- 5 GHz: 1.2 Gbps
Antenna gain:
- 2.4 GHz: 1 dBi
- 5 GHz: 3 dBi
Button: (1) Factory reset
Ambient operating temperature: -15 to 45° C (5 to 113° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: FCC, IC, CE
NDAA Compliant: Yes

LEDs
PON status:
- (3) signal LEDs
- All-OFF: bootup
- 1x orange: signal too low (< -28 db)
- 1x white: signal low (>= -28 db)
- 2x white: signal good (>= -25 db)
- 3x white: signal strong (>= -11 db)
- 1x orange + 2x white: signal too strong (>= -8 db)
- 3x orange: no signal
- LEDs alternate between orange + white + orange and a signal strength indicator: No authority
Ethernet:
- Steady white: link up
- Blinking white: activity
- OFF: link down
Power: White: ON

Software
Mode: ONU/ONT layer 2/3 Ethernet switch
Services: Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features
Utilities: Dashboard, monitoring, alarms, and logs
Other: Remote reset, remote reboot, remote firmware upgrade, VLAN support
Security: GEM Port Encryption
Ubiquiti specific features: UISP Mobile App
WiFi standards: 802.11 b/g/n/ac/ax
Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)

Fiber
Operating wavelength:
- TX: 1310 nm
- RX: 1490 nm
Line code: Scrambled NRZ
Optical interface nominal bit rate:
- Downstream: 2488.32 Mbit/s
- Upstream: 1244.16 Mbit/s
Physical reach: 20 km

Supported Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11ax (WiFi 6): 8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)
