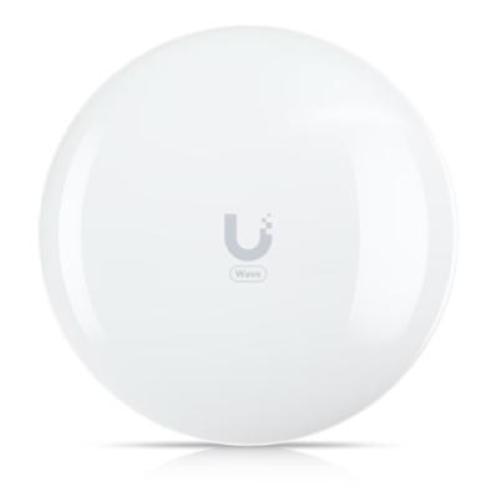

Station PtmP Compact 60 GHz UBIQUITI Wave-Pico-EU vel.trasm.2Gbps-5 GHz weatherproof backup radio 1P GbE RJ45

Mechanical
Dimensions: Ø152.1 x 55.8 mm
Weight: Without mount: 347 g
With mount: 409 g
Enclosure material: UV stabilized polycarbonate
Mount material: UV stabilized polycarbonate
Pole mount diameter: 20 to 53.1 mm on pipe outer diameter
Wind loading: 31.3 N at 200 km/h
Weatherproofing: IPX6

Hardware
Processor: Dual-core ARM® Cortex®-A53 at 1 GHz
Memory: DDR3L 512 MB
Networking interface: 1x GbE RJ45 port
Max. power consumption: 10W
Power method:
- Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -)
- Passive PoE 2-pairs (4, 5+; 7, 8 -), for 44–54V DC only
Power supply: 48V DC, 0.5A gigabit PoE adapter (Included)
Supported voltage range:
- 44–54V DC
- 22–27V DC
GPS: No
Button: Factory reset
LEDs: Power, Ethernet, link
Ambient operating temperature: -40 to 60° C (-40 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: FCC, IC, CE
NDAA Compliant: Yes

Software
Operating mode: PtMP station, PtP
Ubiquiti specific features: Wave AI, discovery protocol
Services: UISP, ping watchdog, NTP client, SNMP
Tools: Antenna alignment, discovery utility, ping, trace route, speed test, cable test, site survey, traffic shaping
Network: Bridge/Router mode
Application requirements:
- UISP web: Version 2.4.61 and later
- UISP mobile iOS™: Version 2.32.0 and later
- UISP mobile Android™: Version 2.31.9 and later

System
Total throughput: 2 Gbps
Max. range:
- Up to 1.3 km (Wave AP)
- Up to 0.9 km (Wave AP Micro)
Encryption: WPA2-PSK (AES)

RF
Operating frequency: 57–71 GHz
Channel bandwidth: 2160, 1080, 540 MHz
Operating channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
Modulation: 16QAM, QPSK
Antenna gain: 27.7 dBi
Polarization: Vertically linear
Beamwidth:
- Azimuth: 3 dB 6°
- Elevation: 3 dB 6°

Back-Up RF
WiFi standard: 802.11ax (WiFi 6)
Operating frequency: 5180 - 5875 MHz
Channel bandwidth: 20, 40, 80 MHz
Modulation: BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain: 9 dBi
Polarization: Dual-linear
Beamwidth:
- Azimuth: 3 dB 50°
- Elevation: 3 dB 50°
Cross-pol isolation: 15 dB

LEDs
Power:
- Flashing white: bootup in progress
- White: not connected to UISP application
- Blue: connected to UISP application
- Flashing blue: locate in progress
- Blue/white: firmware upgrade in progress
Ethernet: Flashing blue: Ethernet traffic detected
Links:
- White: 5 GHz link
- Blue: 60 GHz link
