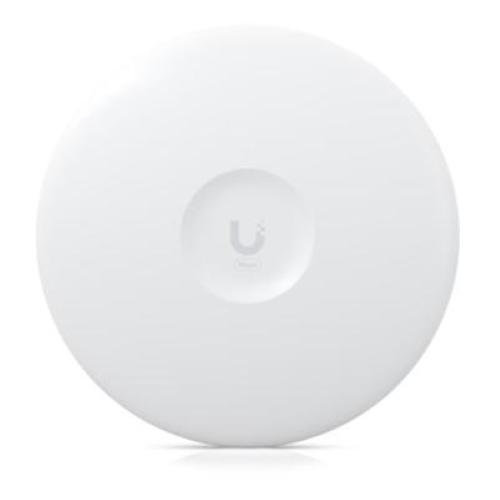

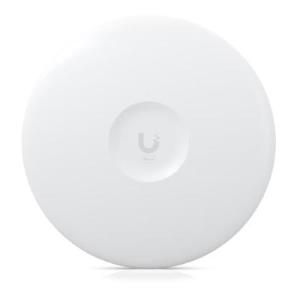

ANTENNA RADIO UBIQUITI WAVE-PRO-EU HIGH-CAPACITY 60GHZ 2P 2,5GBE 1P 10G SFP+- GPS E BLUETOOTH INTEG.

Mechanical
Dimensions: Ø424.4 x 166.2 mm (Ø16.7 x 6.5'')
Weight:
- Without mount: 2.8 kg (6.2 lb)
- With mount: 4 kg (8.8 lb)
Enclosure material: Aluminum alloy, UV stabilized plastic
Mount material: Stainless steel
Pole mount diameter: 25 to 76.2 mm (1 to 3'') on pipe outer diameter
Wind loading: 369 N at 200 km/h (83 lbf at 125 mph)
Weatherproofing: IPX6

Hardware
Processor: Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory: DDR3L 512 MB
Networking interface:
- (2) 2.5 GbE RJ45 ports
- (1) 10G SFP+ port
Max. power consumption: 26W
Power method:
- Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
- Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply: 48V DC, 0.65A, 2.5 GbE PoE adapter (Included)
Supported voltage range:
- 44–54V DC
- 22–27V DC
GPS: Yes
Button: Factory reset
LEDs: Power, (2) Ethernet, SFP+, GPS, link
Ambient operating temperature: -40 to 60° C (-40 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: FCC, IC, CE
NDAA Compliant: Yes

Software
Operating mode: PtP, PtMP station
Ubiquiti specific features: Integrated 60 GHz radio, discovery protocol, Wave technology
Services: UISP, ping watchdog, NTP client, SNMP
Tools:
Antenna alignment, discovery utility, ping, trace route, speed test, cable test, site survey, traffic shaping
Network: Bridge/Router* mode
Application requirements: UISP: Version 2.3.0 and later

System
Total throughput: 5.4 Gbps
Max. range:
- PtP: Up to 15 km
- PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
Encryption: WPA2-PSK (AES)

RF
Operating frequency: 57 to 71 GHz
Channel bandwidth: 2160, 1080, 540 MHz
Operating channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
Modulation: 16QAM, QPSK
Antenna gain: 46 dBi
Polarization: Vertically linear
Beamwidth:
- Azimuth: 3 dB 1.3°
- Elevation: 3 dB 1.3°

Back-Up RF
WiFi Standard: 802.11ax (WiFi 6)
Operating frequency US/CA:
- U-NII-1 5150 - 5250 MHz
- U-NII-2A 5250 - 5350 MHz
- U-NII-2C 5470 - 5725 MHz
- U-NII-3 5725 - 5850 MHz
Worldwide: 5150 - 5875 MHz
Channel bandwidth: 20, 40, 80 MHz
Max. conducted TX power: 27 dBm
Modulation: BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain: 22 dBi
Polarization: Dual-linear
Beamwidth:
- Azimuth: 3 dB 8°
- Elevation: 3 dB 8°
Cross-pol isolation: 20 dB

LEDs
Power:
- Flashing white: bootup in progress
- White: not connected to UISP application
- Blue: connected to UISP application
- Flashing blue: locate in progress
- Blue/white: firmware upgrade in progress
Ethernet:
- (2) Flashing blue: Ethernet traffic detected
SFP+:
- (1) Flashing blue: SFP+ traffic detected
Links:
- White: 5 GHz link
- Blue: 60 GHz link
GPS:
- Blue: receiving at least (4) GPS satellite signal
