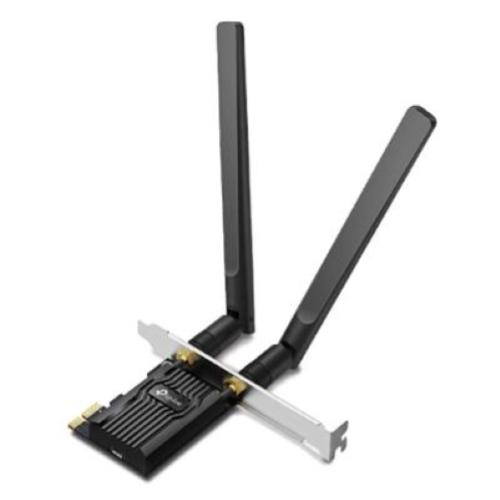

ADATTATORE PCI express Wireless AX1800 TP-LINK Archer TX20E 574Mbps a 2.4Ghz + 1210Mbps a 5Ghz Bluetooth 5.2,MU-MIMO, WPA3

CARATTERISTICHE HARDWARE
Dimensions: 120.8 × 78.5 × 20.9 mm
Tipo di antenna: 2x High-Gain Dual Band Antennas
Chipset: Realtek Wi-Fi 6 Chipset

CARATTERISTICHE WIRELESS
Standard wireless:
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/g/b 2.4 GHz
- Bluetooth 5.2
WLAN Signal Rate (5 GHz):
- 11ax: Up to 1201 Mbps(dynamic)
- 11ac: Up to 867 Mbps(dynamic)
- 11n: Up to 300 Mbps(dynamic)
- 11a: Up to 54 Mbps(dynamic)
WLAN Signal Rate (2.4 GHz):
- 11ax: Up to 574 Mbps(dynamic)
- 11n: Up to 300 Mbps(dynamic)
- 11g: Up to 54 Mbps(dynamic)
- 11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity (5 GHz):
- 11ax HE80: -57.0dBm
- 11ax HE40: -60.0dBm
- 11ax HE20: -63.0dBm
- 11ac VHT80: -59.5dBm
- 11ac VHT40: -62.5dBm
- 11ac VHT20: -67.5dBm
- 11n HT40: -69.5dBm
- 11n HT20: -72.5dBm
- 11a 54Mbps: -74.0dBm
- 11a 6Mbps: -94.5dBm
WLAN Reception Sensitivity (2.4GHz):
- 11ax HE40: -60.0dBm
- 11ax HE20: -63.0dBm
- 11n HT40: -69.5dBm
- 11n HT20: -72.5dBm
- 11g 54Mbps: -74.0dBm
- 11b 11Mbps: -88.0dBm
WLAN Transmit Power:
- 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
- 2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes: Infrastructure mode
Sicurezza wireless: Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulazione: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
- Archer TX20E
- Two High-Gain Dual Band Antennas
- Low-Profile Bracket
- Bluetooth Header Cable
- Quick Installation Guide
- Resource CD
Requisiti di sistema: Windows 11/10(64-bit) only
Ambiente:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
