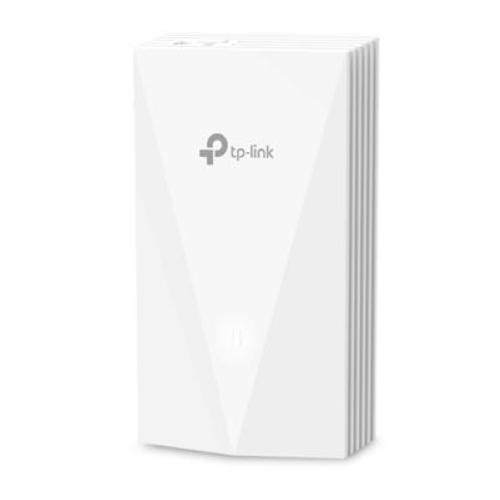

Wireless N Wall-Plate Access Point AX3000 TP-LINK EAP655-Wall Uplink:1P Gigabit RJ45-Downlink: 3P Gigabit RJ45-Dual Band 2.4/5G

CARATTERISTICHE HARDWARE
Interfaccia:
• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.)
Physical security lock: No
Tasto: Reset, LED
Alimentazione: 802.3af/at PoE
Consumo energetico:
• EU: 12W (802.3at PoE, PoE Out off)
• US: 12.6W (802.3at PoE, PoE Out off)
Dimensions: 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
Antenna: 2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 5 dBi
Tipo di montaggio: Wall Plate Mounting (Kits included)

CARATTERISTICHE WIRELESS
Concurrent Clients: 100+
Standard wireless: IEEE 802.11ax/ac/n/g/b/a
Frequenza: 2.4 GHz and 5 GHz
Signal rate:
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps
Funzionalità wireless:
• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming
• Beamforming
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
Sicurezza wireless:
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Potenza di trasmissione:
• CE:
- <20 dBm (2.4GHz, EIRP)
- <23 dBm (5GHz band1 & 2, EIRP)
- <26 dBm (5GHz band3, EIRP)
• FCC:
- < 21 dBm (2.4 GHz)
- < 21 dBm (5 GHz)

GESTIONE
Omada App: Yes
Centralized Management:
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Avvisi e-mail: Yes
LED ON/OFF: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
Log di sistema locale e remoto: Local/Remote Syslog
SSH: Yes
Gestione web-based: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

ALTRO
Certificazione: FCC, RoHS
Contenuto della confezione:
• AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall
• Installation Guide
• Mounting Kits
Requisiti di sistema: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Ambiente:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
