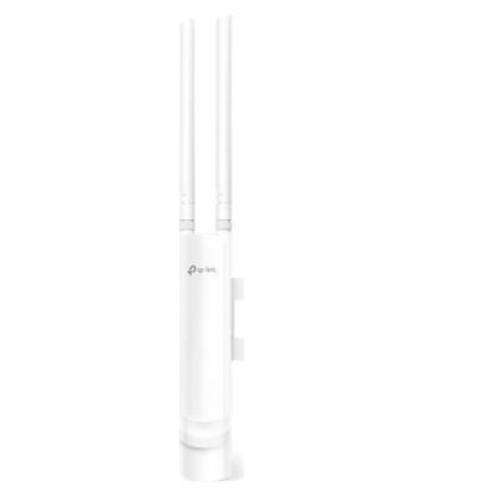

Wireless N Access Point Outdoor AC1200 TP-LINK EAP225-Outdoor 1P Gigabit, 802.3bgn, passive PoE, Multi-SSID, ant.est. Fino:30/06

CARATTERISTICHE HARDWARE
Interfaccia: 1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)
Tasto: Reset
Alimentazione:
• 802.3af/at PoE
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Consumo energetico: 10.5W
Dimensioni ( L x P x A ):
• 215.7×45×37.7 mm (without antenna & mounting kit)
• 403.8×90.7×55.2 mm (with antenna & mounting kit)
Antenna:
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi
Weatherproof Enclosure: IP65
Tipo di montaggio: Pole/Wall Mounting (Kits included)

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11a/b/g/n/ac
Frequenza: 2.4GHz, 5GHz
Signal rate:
• 802.11ac:
- 5G: 6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80)
- 2.4G: 78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 5.5, 11Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Funzionalità wireless:
• Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control （Adjust Transmit Power on dBm）
• QoS(WMM)
• MU-MIMO
• Seamless Roaming
• Omada Mesh
• Airtime Fairness
• Beamforming
• Band Steering
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Sicurezza wireless:
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
Potenza di trasmissione:
• CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)

GESTIONE
Omada App: Yes
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Avvisi e-mail: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
Log di sistema locale e remoto: Yes
SSH: Yes
Gestione web-based: Yes
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

ALTRO
Certificazione: CE�FCC�RoHS
Contenuto della confezione:
• Access Point EAP225-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
• Waterproof Ruber Insert
• Waterproof Antenna
Requisiti di sistema: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Ambiente:
• Operating Temperature: -30–70 ℃ (-22–158 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
