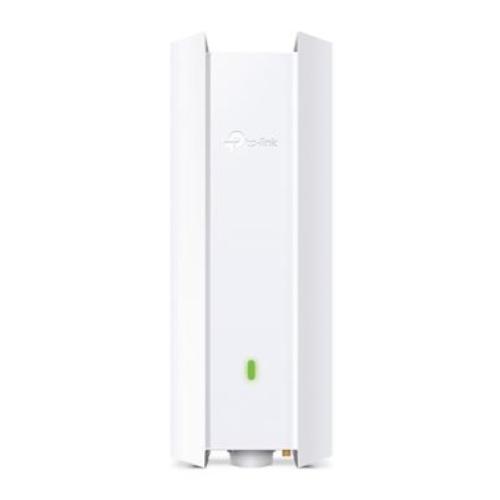

Wireless N Access Point In/Outdoor AX1800 TP-LINK EAP610-Outdoor 1P Gigabit, Dual-band 802.3at Poe and passive,IP67,4 Fino:30/06

CARATTERISTICHE HARDWARE
Interfaccia: 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Tasto: Reset
Alimentazione:
• 802.3at PoE
• 48V/0.5A Passive PoE (PoE Adapter Included)
Consumo energetico:
• 12.5 W for PoE
• 10 W for DC
Dimensioni ( L x P x A ): 280.4×106.5×56.8 mm (without antenna & mounting kit)
Antenna:
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Weatherproof Enclosure: IP67
Tipo di montaggio: Pole/Wall Mounting (Kits included)

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11ax/ac/n/g/b/a
Frequenza: 2.4 GHz, 5 GHz
Signal rate:
• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
• 802.11ac: 5G:6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Potenza di trasmissione:
• CE: <15 dBm (2.4 GHz, EIRP), <22 dBm(5 GHz, EIRP)
• FCC: <22 dBm (2.4 GHz), <22 dBm(5 GHz)
Funzionalità wireless:
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• Omada Mesh
• Seamless Roaming
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Sicurezza wireless:
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

GESTIONE
Omada App: Yes
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Avvisi e-mail: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
Log di sistema locale e remoto: Yes
SSH: Yes
Gestione web-based: Yes
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
• Access Point EAP610-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Waterproof Kits
• Waterproof Antenna
• Installation Guide
Requisiti di sistema: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Ambiente:
• Operating Temperature: -30–70 ℃ (-22–158 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
