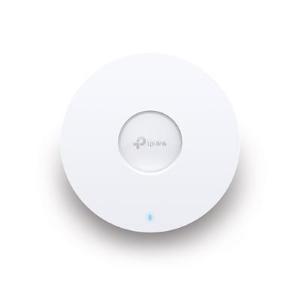

Wireless N Access Point AX1800 Ceiling Mount DualBand TP-LINK EAP610 Wi-fi 6-1P Giga RJ45,802.3at POE 12V DC MU-MIMO

CARATTERISTICHE HARDWARE
Interfaccia: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Tasto: Reset
Alimentazione:
• 802.3at PoE
• 12 V / 1 A DC
Consumo energetico:
• EU: 12.8 W (For PoE); 10.8 W (for DC)
• US: 13.9W (For PoE); 11.8 W (for DC)
Dimensioni ( L x P x A ): 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Tipo di antenna: Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Tipo di montaggio: Ceiling /Wall Mounting (Kits included)

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11ax/ac/n/g/b/a
Frequenza: 2.4 GHz and 5 GHz
Signal rate: 5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Funzionalità wireless:
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Sicurezza wireless:
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Potenza di trasmissione:
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)

GESTIONE
Omada App: Yes
Centralized Management:
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
Avvisi e-mail: Yes
LED ON/OFF: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
Log di sistema locale e remoto: Local/Remote Syslog
SSH: Yes
Gestione web-based: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3)

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
• EAP610
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
Requisiti di sistema: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Ambiente:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
