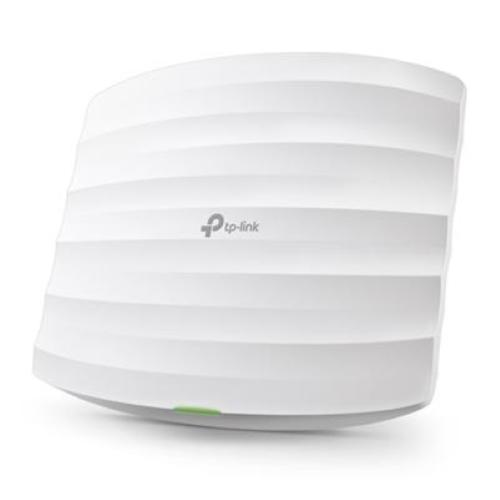

Wireless N Access Point AC1350 DualBand TP-LINK EAP225 1P Giga Lan,802.3af PoE, Multi-SSID, 4 antenne interne 4dbi

CARATTERISTICHE HARDWARE
Interfaccia: Gigabit Ethernet (RJ-45) Port ×1 (Support IEEE802.3af PoE and Passive PoE)
Physical security lock: Yes
Tasto: Reset
Alimentazione:
- 802.3af/at PoE
- 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Consumo energetico: 10.5 W
Dimensioni ( L x P x A ): 205.5 × 181.5 × 37.1 mm
Tipo di antenna:
- 3 Internal Omni
- 2.4GHz: 4dBi
- 5GHz: 5dBi
Tipo di montaggio: Ceiling /Wall Mounting (Kits included)

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11ac/n/g/b/a
Frequenza: 2.4GHz and 5GHz
Signal rate:
- 5GHz: Up to 867Mbps
- 2.4GHz: Up to 450Mbps
Funzionalità wireless:
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Sicurezza wireless:
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
Potenza di trasmissione:
CE:
- ≤20dBm(2.4GHz,EIRP)
- ≤23dBm(5GHz,EIRP)
FCC:
- ≤24dBm(2.4GHz)
- ≤22dBm(5GHz)

GESTIONE
Omada App: Yes
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Avvisi e-mail: Yes
LED ON/OFF: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
Log di sistema locale e remoto: Local/Remote Syslog
SSH: Yes
Gestione web-based: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
Requisiti di sistema: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Ambiente:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
