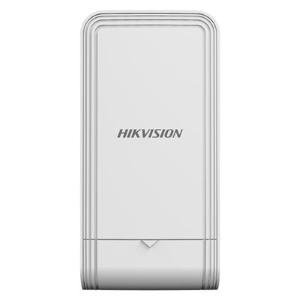

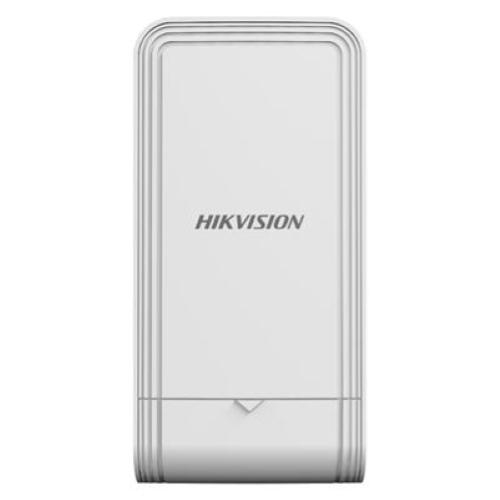

WIRELESS BRIDGE OUTDOOR HIKVISION DS-3WF02C-5AC/O 5GHz AC867 2x2 MIMO 5Km

Wireless Parameter
Max. Transmission Rate Of Air Interface: ≤ 867 Mbps
Wireless Standard: IEEE 802.11/a/n/ac
Working Frequency Band:
- 5180 to 5240 MHz
- 5260 to 5320 MHz (DFS)
- 5500 to 5700 MHz (DFS)
- 5745 to 5825 MHz
Transmitting Power: 22 dBm
Receiving Sensitivity: -58 ± 2 dBm @ AC80 -MCS9; -84 ± 2 dBm @ AC80 -MCS0
Antenna Gain: 9 dBi
Antenna Angle: Beamwidth [3dB] (35°± 5°)
Networking Mode: Point-to-Point, Point-to-Multipoints (less than 4 points recommended)

Hardware Parameter
Port Numbers: 2 × Gigabit RJ45 ports
LED Indicator: Power indicator, LAN indicator, signal intensity indicator
Reset: Hardware resetting button
Power Supply: 12 VDC/1 A Passive PoE; 12 VDC, 1 A

Software Function
Application Function: TDMA, DFS, TPC
Channel Width: 20/40/80 MHz
Channel Selection: Auto/manual selection
Network Protocol: NTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging)
Security Mode: WPA2-PSK
Security Mechanism: Wireless network name hidden
Management Method: Web, iVMS-4200
Upgrade: Web, iVMS-4200
System Log: Syslog, control center information

General
Product Dimensions (W × H × D): 92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'')
Package Dimensions (W × H × D): 132 mm × 228 mm × 91 mm (5.19'' × 8.97'' × 3.58'')
Net Weight: 0.307 kg (0.677 lb)
Gross Weight: 0.807 kg (1.779 lb)
Packing List: Wireless bridge × 1, power adapter (12 VDC, 1 A) × 1, 100 MB PoE injector × 1, binding tape × 2, quick start guide × 1
Packing Method: Single unit packing
Working Temperature: -30°C to 70°C (-22°F to 158°F)
Working Humidity: 5% to 95% (no condensation)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Storage Humidity: 5% to 95% (no condensation)
Installation Mode: Pole mounting
Max. Power Consumption: 4.5 W (for normal); 2.64 W~2.75 W (with 1 channel 2 M stream IPC); 2.67 W~2.75 W (with 1 channel 4 M stream IPC); 2.75 W~2.9 W (with 1 channel 8 M stream IPC)

Approval
EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
Safety: UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
Radio: EN 301 893; EN 300 440; EN 62311; EN 301 489-3; EN 301 489-17; FCC Part 15.247; FCC Part 15.407; FCC 2.1091
