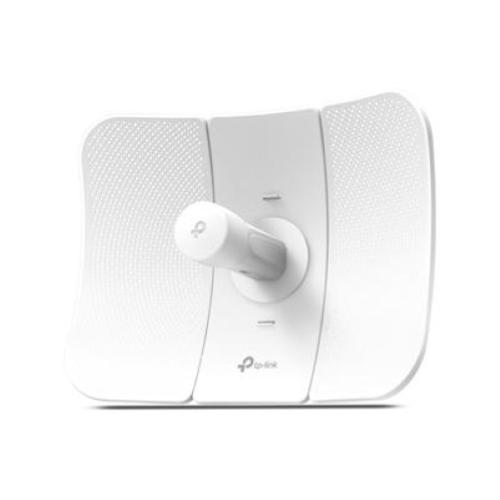

WIRELESS ACCESSPOINT OUTDOOR TP-LINK CPE710 5GHz AC867 23dBi - PoE-GARANZIA 3 ANNI-

CARATTERISTICHE HARDWARE
Processore: Qualcomm 750MHz CPU, MIPS 74Kc
Memoria: 128 MB DDR2 RAM, 16 MB Flash
Interfaccia:
- 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
- 1 Reset Button
Alimentazione:
- Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
- Voltage range: 16-27V DC
Dimensioni ( L x P x A ): 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Guadagno antenna: 23 dBi
Ampiezza del diagramma di emissione: 9° (Azimuth)/7° (Elevation)
Sicurezza:
- 15 KV ESD Protection
- 6 KV Lightning Protection
Enclosure:
- Material: Outdoor PC stabilized plastic
- Weatherproof: IP65 water and dust proof design

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11a/n/ac
Velocità wireless:
- Up to 867 Mbps (80 MHz, Dynamic)
- Up to 400 Mbps (40 MHz, Dynamic)
- Up to 173.4 Mbps (20 MHz, Dynamic)
Frequenza: 5.15–5.85 GHz
Potenza di trasmissione: Max. 27 dBm (Adjustable power by 1dBm)

CARATTERISTICHE SOFTWARE
Configurazione di rete:
- WAN: Static/ Dynamic/ PPPoE
- LAN: Static/ Dynamic/ DHCP
- Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
- Security: SPI Firewall/ Ping Forbidden/ DoS Protection
- Access Control
- Static Routing
- Bandwidth Control
- IP & MAC Binding
Configurazioni wireless:
- Selectable Channel Width: 20/40/80MHz
- Auto Channel Selection
- Transmit Power Control
- Dynamic Frequency Selection(DFS)
- WDS Enable/ Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
- SSID Broadcast Enable/ Disable
- Multi-SSID with VLAN Tagging(AP Mode only)
- Distance/ ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced:
- Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
- Long Range PtP
Gestione:
- Discovery and Remote Management via Pharos Control application
- HTTP/ HTTPS Web-based management
- System log
- SNMP Agent(v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
Tool di sistema:
- Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
- Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
- Spectrum Analyzer
- Speed Test
- Ping
- Traceroute
- Antenna Alignment
Ottimizzazioni di sistema: Optimized IGMP Snooping / Proxy for multicast applications

CARATTERISTICHE ADATTATORE POE
Dimensioni ( L x P x A ): 85.8×43.9×29.7 mm
Interfacce:
- 1 AC Jack with Earth Ground
- 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
- 1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
Tasto: Remote Reset Button
Indicatori di carica LED: Green
Input: 100-240VAC, 50/60Hz
Output: 24VDC, 0.5A Max, +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficienza: >84.29%
Certificazioni: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

ALTRO
Certificazione: CE, FCC, RoHS, IP65, IC
Contenuto della confezione:
- Outdoor Wireless CPE
- 24V 0.5A Passive PoE Adapter
- Pole Mounting Kits
- AC Power Cord
- Installation Guide
Requisiti di sistema: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Ambiente:
- Operating Temperature: -40℃~70℃ (-40℉~158℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing
