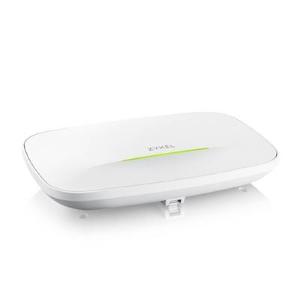

Wireless ACCESS POINT ZYXEL WBE510D-EU0101F NebulaFlex Pro WiFi 7 DualBand 2x2 802.11a/b/g/n/ac/ax/be 6.5Gbp 1P LAN supp.PoE

Wireless
Standard: IEEE 802.11 be/ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
- 2.4GHz: 688Mbps
- 5GHz: 4324Mbps
- 6GHz: 5764Mbps
Frequency band:
- 2.4GHz: 2.412 to 2.472GHz
- 5GHz: 5.15 to 5.35GHz; 5.470 to 5.725GHz
- 6GHz: 5.925 to 6.425GHz
Bandwidth: 20-, 40-, 80-, 160-,240- and 320-MHz
Conducted typical transmit output power: 19/26/22dBm

RF Design
Antenna type: Dual-optimized antenna
Antenna gain:
- 2.4GHz: 1.49dBi, 2x2:2SS
- 5GHz: 2.78dBi, 4x4:2SS
- 6GHz: 3.17dBi, 4x4:2SS
Minimum receive sensitivity: Min. Rx sensitivity up to -99dBm

WLAN Feature
Band steering: Yes
WDS/Mesh: Yes
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS: Yes
Load balancing: Yes
Advanced cellular coexistence: Yes

Security
Encryption: WEP, WPA, WPA2, WPA3
Authentication:
- IEEE 802.1X
- RADIUS authentication
Access management:
- L2-isolation
- MAC filtering
- Rogue AP detection

Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes

Management
Operating mode:
- Nebula Cloud managed
- Controller-managed
- Standalone
ZON Utility:
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations:
- IP configuration
- IP renew
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
Web UI/CLI: Yes
SNMP: Yes

Physical Specifications
Item:
- Dimensions (WxDxH)(mm/in.): 250 x 160 x 47/9.84 x 6.30 x 1.85
- Weight (g/lb.): 810/1.79
Packing:
- Dimensions (WxDxH)(mm/in.): 279.5 x 180.5 x 66/11.00 x 7.11 x 2.60
- Weight (g/lb.): 1035/2.28
Included accessories: Mount plate, Mounting screws
MTBF (hr): 691,722

Physical Interfaces
Ethernet port: 1 x 1/2.5GbE LAN
Power:
- PoE (802.3at): power draw 21.5W
- DC input: USB PD 15 VDC 2A (Type C)
PoE modes:
- IEEE 802.3af: No Wireless
- IEEE 802.3at: Unrestricted
- IEEE 802.3bt: Unrestricted

Environmental Specifications
Operating:
- Temperature: 0°C to 50°C/32°F to 122°F
- Humidity: 10% to 95% (non-condensing)
Storage:
- Temperature: -40°C to 70°C/-40°F to 158°F
- Humidity: 10% to 90% (non-condensing)

Certifications
Radio:
- FCC Part 15C
- FCC Part 15E
- FCC Part 2.1091
- ETSI EN 300 328
- EN 301 893
- Draft EN 303 687
- EN 50385
- EN 50665
- EN IEC 62311
- LP0002
EMC:
- FCC Part 15B
- EN 301 489-1
- EN 301 489-17
- EN55032
- EN55035
- EN61000-3-2/-3
- EN60601-1-2
- BSMI CNS15936
Safety:
- EN 62368-1
- IEC 62368-1
- BSMI CNS15598-1
