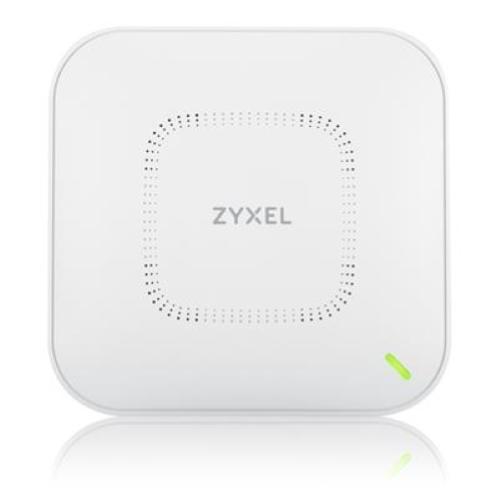

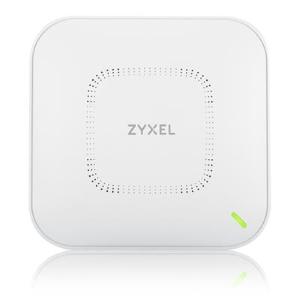

Wireless ACCESS POINT ZYXEL WAX650S-EU0101F NebulaFlex DualRadio 4x4 802.11abgn/ac/ax 3550Mbps 2P Lan- supp.PoE 19W

Product name
Description: 802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point

Wireless
Standard: IEEE802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
- 2.4GHz: 1150Mbps
- 5GHz: 2400Mbps
Frequency band:
2.4 GHz:
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
5 GHz (IEEE 802.11 a/n/ac):
- USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
- Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth: 20-, 40- ,80- and 160-MHz
Conducted typical transmit output power:
- US (2.4GHz/5GHz): 28/28dBm
- EU (2.4GHz/5GHz): 19/26dBm

RF Design
Antenna type: 4x4 Smart Antenna
Antenna gain:
- 2.4GHz: Peak Gain 3dBi
- 5GHz: Peak Gain 5.8dBi
Minimum Receive sensitivity: -105 dBm

WLAN feature
Band Steering: Yes
WDS: Yes (V6.10)
Mesh AP (By License): Yes (V6.10)
Mesh AP for multiple SSID with VLAN: Yes (V6.10)
Smart mesh: Yes (V6.10)
Fast roaming: Pre-authentication, PMK caching and 802.11k/v/r
DCS (Auto Channel): Yes
Load balancing: Yes

Security
Wireless Security: WPA, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
Access management: L2-isolation, MAC filtering, Rogue AP detection, EAP, IEEE 802.1X, RADIUS authentication

Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes
DiffServ marking: Yes

Management
Operating mode:
- Nebula Cloud managed
- Controller-managed
- Standalone
ZON Utility:
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
- One-click quick association with Zyxel AP Configurator (ZAC)
Zyxel AP Configurator:
- Batch AP configuration
- Batch AP firmware upgrade
- Batch AP profile backup
Zyxel Wireless Optimizer:
- WiFi AP planning
- WiFi coverage detection
- Wireless health management
Web UI/CLI: Yes
SNMP: Yes

Physical Specifications
Item:
- Dimensions (WxDxH)(mm/in.): 230 x 235 x 53.5/9.06 x 9.25 x 2.11
- Weight (g/lb.): 1160/2.56
Packing:
- Dimensions (WxDxH)(mm/in.): 282 x 266 x 79/11.1 x 10.47 x 3.11
- Weight (g/lb.): 1490/3.38
Included accessories: Mount plate, Mounting screws
MTBF (hr): 180,653

Physical Interfaces
Ethernet port:
- 1 x 1/2.5/5Gbps Ethernet (PoE port)
- 1 x 1Gbps Ethernet
Power:
- 802.3BT POE (Maximum power draw: 31W)
- 12V DC input

Environmental Specifications
Operating:
- Temperature: 0°C to 50°C/32°F to 122°F
- Humidity: 10% to 95% (non-condensing)
Storage:
- Temperature: -30°C to 70°C/-22°F to 158°F
- Humidity: 10% to 90% (non-condensing)

Certifications
Radio: FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC: FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438
Safety: Safety EN 60950-1, IEC 60950-1, BSMI CNS14336-1
