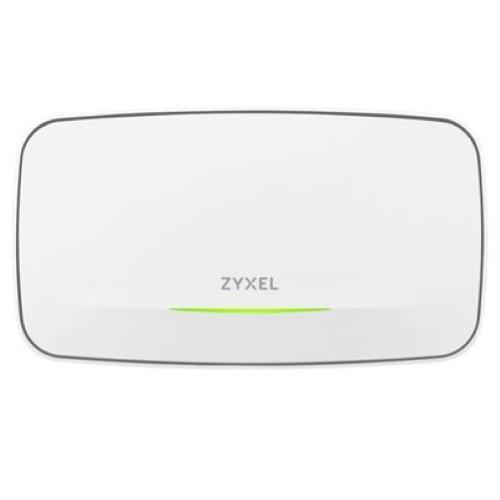

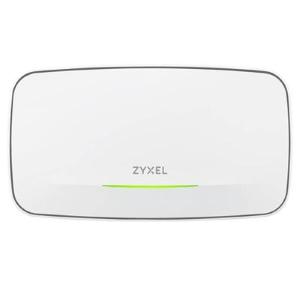

Wireless ACCESS POINT ZYXEL WAX640S-6E-EU0101F NebulaFlex Pro WiFi6E TriRadio 4x4 802.11abgn/ac/ax 7775Mbps- Ant.Smart int.

Product name
Description: 802.11ax (WiFi 6E) Tri-Radio Unified Pro Access Point

Wireless
Standard: IEEE 802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
- 2.4GHz: 575 Mbps
- 5GHz: 2400 Mbps
- 6GHz: 4800 Mbps
Frequency band:
2.4 GHz:
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
- USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
- European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
6 GHz:
- USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz
- European (ETSI): 5.925 to 6.425 GHz
Bandwidth: 20-, 40-,80- and 160-MHz
Conducted typical transmit output power (limited by local regulatory requirements):
- US (2.4GHz/5GHz) or +/6GHz): 24/25/24dBm
- EU (2.4GHz/5GHz) or +/6GHz): 18/25/19dBm

RF Design
Antenna type: 4x4 + 2x2+ 2x2 Smart Antenna
Antenna gain:
- 2.4 GHz: Peak Gain 3dBi
- 5 GHz: Peak Gain 6dBi
- 6 GHz: Peak Gain 6dBi
Minimum Receive sensitivity: Min. Rx sensitivity up to -104 dBm

WLAN feature
Band Steering: Yes
WDS/Mesh: Yes
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS: Yes
Load balancing: Yes
Advanced Cellular Coexistence: Yes

Security
Encryption:
- WEP
- WPA
- WPA2-PSK
- WPA3
Authentication:
- WPA
- WPA2
- WPA3-Enterprise
- EAP
- IEEE 802.1X
- RADIUS authentication
Access management:
- L2-isolation
- MAC filtering
- Rogue AP detection

Networking
IPv6: Yes
VLANs: Yes (Doesn’t support traffic shaping in NCC)
WMM: Yes
U-APSD: Yes

Management
Operating mode:
- Nebula Cloud managed
- Controller-managed
- Standalone
ZON Utility:
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations
- IP configuration
- IP renew
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
Web UI/CLI: Yes
SNMP: Yes

Physical Specifications
Item:
- Dimensions (WxDxH)(mm/in.): 270 x 150 x 47 mm / 10.63 x 5.91 x 1.85
- Weight (g/lb.): 900g/1.98lb
Packing:
Dimensions (WxDxH)(mm/in.): 324 x 184 x 74 mm / 11.76 x 7.24 x 2.91
Weight (g/lb.): 1220g/2.69lb
Included accessories:
- Mount plate
- Mounting screws
MTBF (hr): 361,400

Physical Interfaces
Ethernet port:
- 1 x 1/2.5Gbps LAN
- 1 x 1Gbps LAN
Power:
- PoE (802.3)bt: power draw 28 W
- DC input : 12 VDC 2.5A
PoE Modes:
- IEEE802.3af: No Wireless
- IEEE802.3at: Unrestricted; 6GHz 2T4R in Some Countries
- IEEE802.3bt: Unrestricted

Environmental Specifications
Operating:
- Temperature: 0°C to 50°C/32°F to 122°F
- Humidity: 10% to 95% (non-condensing)
Storage:
- Temperature: -40°C to 70°C/-40°F to 158°F
- Humidity: 10% to 95% (non-condensing)

Certifications
Radio:
- FCC Part 15C
- FCC Part 15E
- ETSI EN 300 328
- EN 301 893
- EN 303 687
- LP0002
EMC:
- FCC Part 15B
- EN 301 489-1
- EN 301 489-17
- EN55022
- EN55024
- EN60601-1-2
- BSMI CNS13438
Safety:
- Safety EN 62368
- BSMI CNS14336-1
