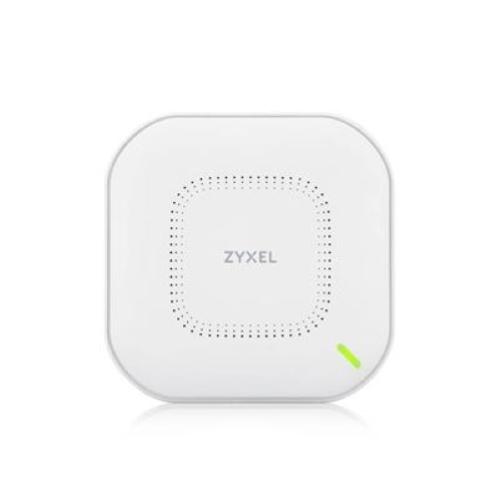

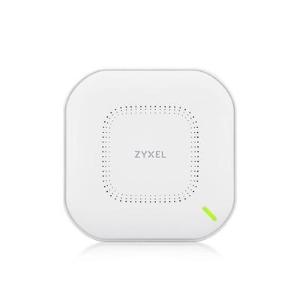

Wireless ACCESS POINT ZYXEL WAX630S-EU0101F NebulaFlex DualRadio 4x4 802.11abgn/ac/ax 2975Mbps 2P Lan- supp.PoE 19W

Product name
Description: 802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point

Wireless
Standard: IEEE 802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
- 2.4GHz: 575 Mbps
- 5GHz: 2400 Mbps
Frequency band:
2.4 GHz:
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
- USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
- Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth: 20-, 40-, 80- and 160-MHz
Conducted typical transmit output power:
- US (2.4GHz/5GHz): 23/28 dBm
- EU (2.4GHz/5GHz): 19/25 dBm

RF Design
Antenna type: 4x4 + 2x2 smart antenna
Antenna gain:
- 2.4GHz: Peak gain 3 dBi
- 5GHz: Peak gain 4.5 dBi
Minimum Receive sensitivity: Min. Rx sensitivity up to -101 dBm

WLAN feature
Band Steering: Yes
WDS/Mesh: Yes
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS: Yes
Load balancing: Yes

Security
Encryption:
- WEP
- WPA
- WPA2-PSK
- WPA3
Authentication:
- WPA
- WPA2
- WPA3-Enterprise
- EAP
- IEEE 802.1X
- RADIUS authentication
Access management:
- L2-isolation
- MAC filtering
- Rogue AP detection

Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes

Management
Operating mode:
- Nebula Cloud managed
- Controller-managed
- Standalone
ZON Utility:
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
Zyxel Wireless Optimizer:
- WiFi AP planning
- WiFi coverage detection
- Wireless health management
Web UI/CLI: Yes
SNMP: Yes

Physical Specifications
Item:
- Dimensions (WxDxH) 180 x 180 x 39 mm
- Weight 530g
Packing:
- Dimensions (WxDxH) 228 x 216 x 63 mm
- Weight 765g
Included accessories: Mount plate, Mounting screws
MTBF (hr): 321,114

Physical Interfaces
Ethernet port:
- 1 x 1/2.5Gbps LAN
- 1 x 1Gbps LAN
Power:
- PoE (802.3) at: power draw 19 W
- DC input: 12 VDC 2 A

Environmental Specifications
Operating:
- Temperature: 0°C to 50°C/32°F to 122°F
- Humidity: 10% to 95% (non-condensing)
Storage:
- Temperature: -40°C to 70°C/-40°F to 158°F
- Humidity: 10% to 95% (non-condensing)

Certifications
Radio:
- FCC Part 15C
- FCC Part 15E
- ETSI EN 300 328
- EN 301 893
- LP0002
EMC:
- FCC Part 15B
- EN 301 489-1
- EN 301 489-17
- EN55022
- EN55024
- EN61000-3-2/-3
- EN60601-1-2
- BSMI CNS13438
Safety:
- Safety EN 60950-1
- IEC 60950-1
- BSMI CNS14336-1
