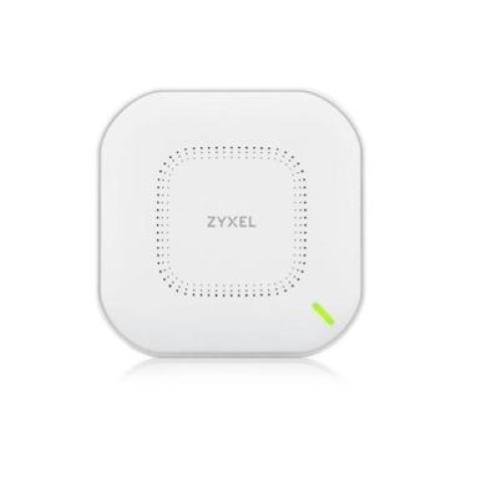

Wireless ACCESS POINT ZYXEL WAX610D-EU0101F NebulaFlex DualRadio 4x4 802.11abgn/ac/ax 1775Mbps 1P Lan- supp.PoE 17W

Product name
Description: 802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point

Wireless
Standard: IEEE802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
- 2.4GHz: 575Mbps
- 5GHz: 2400Mbps
Frequency band:
2.4 GHz:
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
5 GHz (IEEE 802.11 a/n/ac):
- USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
- Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth: 20-, 40- ,80- and 160-MHz
Conducted typical transmit output power:
- US (2.4GHz/5GHz): 23/28dBm
- EU (2.4GHz/5GHz): 19/25dBm

RF Design
Antenna type: 4x4 + 2x2 dual-optimized antenna
Antenna gain:
- 2.4GHz: Peak Gain 5dBi
- 5GHz: Peak Gain 6dBi
Minimum Receive sensitivity: Min. Rx sensitivity up to -101 dBm

WLAN feature
Band Steering: Yes
WDS/Mesh: Yes (V6.10)
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS (Auto Channel): Yes
Load balancing: Yes

Security
Encryption: WEP, WPA, WPA2-PSK/WPA3
Authentication: WPA, WPA2, WPA3-Enterprise, EAP, IEEE 802.1X, RADIUS authentication
Access management: L2-isolation, MAC filtering, Rogue AP detection

Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes
DiffServ marking: Yes

Management
Operating mode:
- Nebula Cloud managed
- Controller-managed
- Standalone
ZON Utility:
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
Zyxel Wireless Optimizer:
- WiFi AP planning
- WiFi coverage detection
- Wireless health management
Web UI/CLI: Yes
SNMP: Yes

Physical Specifications
Item:
- Dimensions (WxDxH)(mm/in.): 180 x 180 x 39/7.09 x 7.09 x 1.54
- Weight (g/lb.): 545/1.20
Packing:
- Dimensions (WxDxH)(mm/in.): 229 x 216 x 64/9.02 x 8/50 x 2.52
- Weight (g/lb.): 780/1.72
Included accessories: Mount plate, Mounting screws
MTBF (hr): 329,004

Physical Interfaces
Ethernet port:
- 1 x 10/100/1000/2500M LAN
- 1 x 10/100/1000M LAN
Power:
- PoE (802.3)at: power draw 19.5 W
- DC input : 12 VDC 2A

Environmental Specifications
Operating:
- Temperature: 0°C to 50°C/32°F to 122°F
- Humidity: 10% to 95% (non-condensing)
Storage:
- Temperature: -30°C to 70°C/-22°F to 158°F
- Humidity: 10% to 90% (non-condensing)

Certifications
Radio: FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC: FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438
Safety: Safety EN 60950-1, IEC 60950-1, BSMI CNS14336-1
