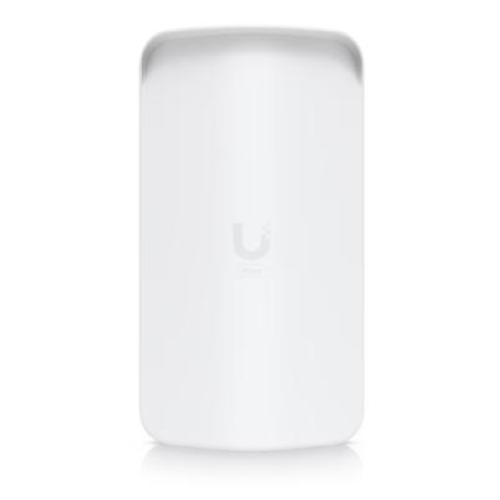

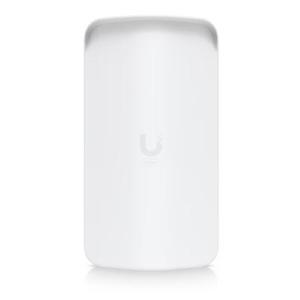

Wireless Access Point UBIQUITI Wave-AP-Gen2-EU Wide-coverage 60GHz PtMP Max.Vel.trasm. 5Gbps,copert.90° weatherproof-1P 2.5GbE

Mechanical
Dimensions: 158.3 x 286.8 x 100.2 mm
Weight: 1.5 kg
Enclosure material: UV stabilized polycarbonate, aluminum alloy
Pole mount diameter: 25.4 to 60 mm (1 to 2.4'') on pipe outer diameter
Wind loading: 109.8 N at 200 km/h
Weatherproofing: IPX6

Hardware
Processor: Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory: DDR3L 512 MB
Networking interface:
- 1x 2.5 GbE RJ45 port
- 1x 10G SFP+ port
Max. power consumption: 24W
Power method:
- Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
- Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply: 48V DC, 0.65A 2.5 GbE PoE adapter (Included)
Supported voltage range:
- 44–54V DC
- 22–27V DC
GPS: Yes
Button: Factory reset
LEDs: Power, Ethernet, GPS
Ambient operating temperature: -40 to 60° C (-40 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: FCC, IC, CE

Software
Operating mode: PtMP access point
Ubiquiti specific features: Wave AI, discovery protocol
Services: UISP, ping watchdog, NTP client, SNMP
Tools: Antenna alignment, discovery utility, ping, trace route, speed test, cable test, site survey
Network: Bridge mode
Application requirements: UISP: Version 2.4.205 and later

System
Total throughput: 5.4 Gbps
Supported clients count: 31
Max. range:
- Connecting to a Wave Pro: up to 6 km
- Connecting to a Wave Long-Range: up to 6 km
- Connecting to a Wave Nano: up to 4 km
- Connecting to a Wave Pico: up to 0.9 km
Encryption: WPA2-PSK (AES)

RF
Operating frequency: 57–71 GHz
Channel bandwidth: 2160, 1080, 540 MHz
Operating channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
Modulation: 16QAM, QPSK
Antenna gain: 20 dBi
Polarization: Vertically linear
Beamwidth:
- Azimuth: 3 dB 90°
- Elevation: 3 dB 7°
Electrical downtilt: 0°

Back-Up RF
WiFi standard: 802.11ax (WiFi 6)
Operating frequency: 5150 - 5875 MHz
Channel bandwidth: 20, 40, 80 MHz
Modulation: BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain: 13 dBi
Cross-pol isolation: 18 dB
Polarization: Dual-linear
Beamwidth:
- Azimuth: 6 dB 95°
- Elevation: 6 dB 25°
Electric downtilt: 0°

LEDs
Power:
- Flashing white: bootup in progress
- White: not connected to UISP application
- Blue: connected to UISP application
- Flashing blue: locate in progress
- Blue/white: firmware upgrade in progress
Ethernet:
- Flashing white: Ethernet traffic detected
- Flashing blue: SFP+ traffic detected
GPS: Blue: receiving at least 4x GPS satellite signal
