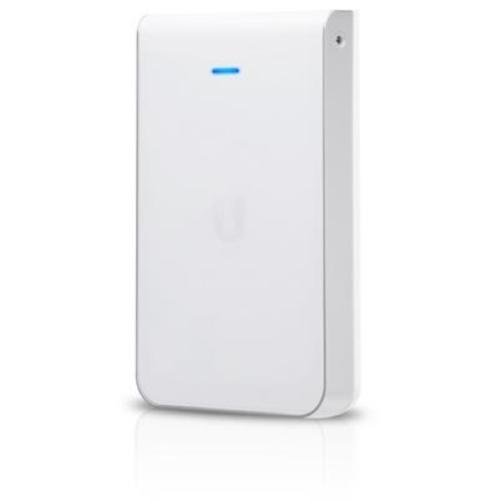

Wireless Access Point UBIQUITI UniFi UAP-IW-HD da incasso 802.11ac PoE+

Mechanical
Dimensions: 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01'')
Weight: 210 g (7.41 oz)

Hardware
Networking Interface: (5) 10/100/1000 Ethernet Ports
Button: Reset
Power Method: PoE/PoE+
Supported Voltage Range: 44 to 57VDC
Power Supply: UniFi Switch (PoE)
PoE Out: 48V Passthrough (Pins +1, 2; -3, 6)
Maximum Power Consumption: 11W
With PoE Passthrough: 23W
Max. TX Power:
- 2.4 GHz: 23 dBm
- 5 GHz: 26 dBm
Dual-Band Antennas:
- (2) Single-Port, Single-Polarity Dual-Band Antennas
- 2.4 GHz: 1.8 dBi Each
- 5 GHz: 3.4 dBi Each
Single-Band Antennas:
- (2) Single-Port, Dual-Polarity, Single-Band Antennas
- 5 GHz: 6 dBi Each
Mounting: 1-Gang Electrical Wall Box (Not Included)
Operating Temperature: -10 to 60° C (14 to 140° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Software
WiFi Standards: 802.11 a/b/g/n/r/k/v/ac/ac-wave2
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID: Up to 8 per Radio
VLAN: 802.1Q
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
Power Save: Supported
Beamforming: Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 200+

Supported Data Rates (Mbps)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac:
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
- 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)
