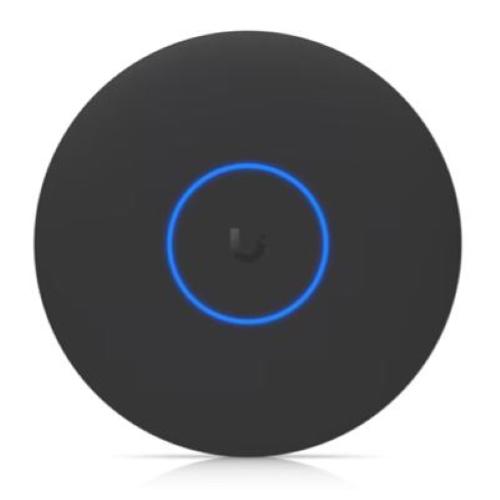

WIRELESS ACCESS POINT UBIQUITI UNIFI 7 U7-PRO-XG-B NERO A SOFFITTO CON SUPPORTO 10/5/2.5/1 GBE

Overview
Dimensions: Ø206 × 32.5 mm (Ø8.1 × 1.3'')
WiFi Standard: WiFi 7
Spatial Streams: 6
Coverage Area: 140 m² (1,500 ft²)
Max. Client Count: 300+
Uplink: 10 GbE
Mounting: Ceiling, Wall (Lite Mount Included)
Power Method: PoE+

Performance
MIMO:
- 6 GHz: 2 × 2 (DL/UL MU-MIMO)
- 5 GHz: 2 × 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
Max. Data Rate:
- 6 GHz: 5.8 Gbps (BW320)
- 5 GHz: 4.3 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
Antenna Gain:
- 6 GHz: 6 dBi
- 5 GHz: 5 dBi
- 2.4 GHz: 4 dBi
Max. TX Power:
- 6 GHz: 24 dBm
- 5 GHz: 26 dBm
- 2.4 GHz: 23 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates
802.11be (WiFi 7):
- 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
- 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6):
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5):
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n:
-6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features
Wireless Meshing: âœ"
Band Steering: âœ"
802.11v BSS Transition Management: âœ"
802.11r Fast Roaming: âœ"
802.11k Radio Resource Management (RRM): âœ"
Advanced Radio Management: âœ"
Passpoint (Hotspot 2.0): âœ"
Captive Hotspot Portal:
- Custom Branding Landing Page: âœ"
- Voucher Authentication: âœ"
- Payment-Based Authentication: âœ"
- External Portal Server Support: âœ"
- Password Authentication: âœ"
- Guest Network Isolation: âœ"
Private Pre-Shared Key (PPSK): âœ"
WiFi Speed Limiting: âœ"
Client Device Isolation: âœ"
WiFi Schedules: âœ"
RADIUS over TLS (RadSec): âœ"
Dynamic RADIUS-assigned VLAN: âœ"

Hardware
Max. Power Consumption: 22W
Supported Voltage Range: 42.5—57V DC
Networking Interface: (1) 10 GbE RJ45 port
Weight: 750 g (1.7 lb)
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
LEDs: System White/Blue
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant: âœ"
Certifications: CE, FCC, IC, Anatel: 06630-25-08356
Operating Frequency
US/CA:
- 2400–2472 MHz
- U-NII-1: 5150–5250 MHz
- U-NII-2A: 5250–5350 MHz
- U-NII-2C: 5470–5725 MHz
- U-NII-3: 5725–5850 MHz
- U-NII-5 to U-NII-8: 5925–7125 MHz
Worldwide:
- 2400–2483.5 MHz
- 5150–5725 MHz
- 5925–7125 MHz

Ambient Operating Temperature
-30 to 40 °C (-22 to 104 °F)
Ambient Operating Humidity: 5 to 95% noncondensing

Software
Application Requirements
UniFi Network:
- Version 9.0.114 and later (U7 Pro XG - White)
- Version 9.1.120 and later (U7 Pro XG - Black)
