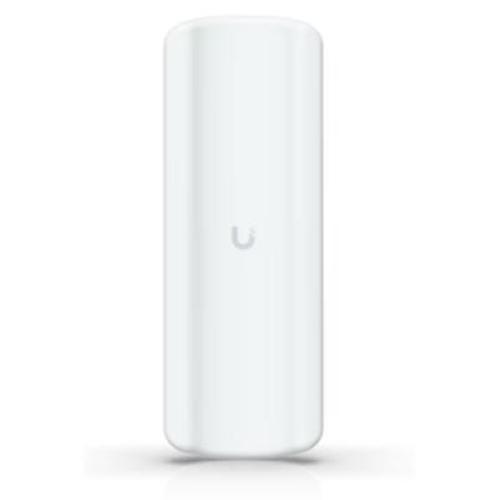

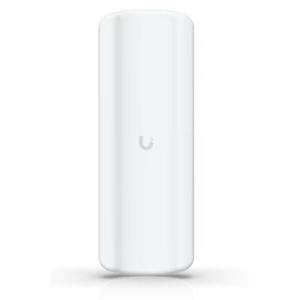

WIRELESS ACCESS POINT UBIQUITI UDB-PRO-SECTOR UNIFI WIFI LEGACY 5GHZ PTP 1P GBE- PER DIST.SUP.5KM

Overview
Dimensions: 360.9 × 129.6 × 71.4 mm (14.2 × 5.1 × 2.8”)
WiFi Standard: WiFi 5
Spatial Streams: 2
Coverage Area: 5 km (3.1 mi)
Mounting Locations: Pole
Weatherproofing: IPX6
Power Method: PoE

Performance
MIMO: 5 GHz: 2 × 2
Max. Data Rate: 5 GHz: 400 Mbps (BW40)
Antenna Gain: 5 GHz: 17 dBi
Max. TX Power: 5 GHz: 25 dBm
Max. Conducted TX Power: 25 dBm (Combined)
Supported Data Rates
802.11ac (WiFi 5):
- 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)
802.11n:
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a:
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security: WPA2 AES

Hardware
Max. Power Consumption: 6W
Supported Voltage Range: 42.5—57V DC
Networking Interface: (1) GbE RJ45 port
Antennas: Internal
Management: Ethernet, WiFi
Channel Bandwidth: 20/40 MHz
Wind Loading: 128.2 N at 200 km/h
Weight:
- Device: 782 g (1.7 lb)
- With mount: 835 g (1.8 lb)
Enclosure Material: UV-stabilized polycarbonate
Mount Material: UV-stabilized polycarbonate, stainless steel
Pole Mount Diameter: 0.9—2.4'' (24—60 mm)
Button: (1) Factory-reset
LEDs: System, Power, Ethernet
NDAA Compliant: âœ"
Certifications: CE, FCC, IC, Anatel: 05978-25-08356
Operating Frequency
US/CA:
- U-NII-1: 5150–5250 MHz
- U-NII-2A: 5250–5350 MHz
- U-NII-2C: 5470–5725 MHz
- U-NII-3: 5725–5850 MHz
Worldwide: 5150–5875 MHz
Ambient Operating Temperature: -40 to 60 °C (-40 to 140 °F)
Ambient Operating Humidity: 5 to 95% noncondensing
