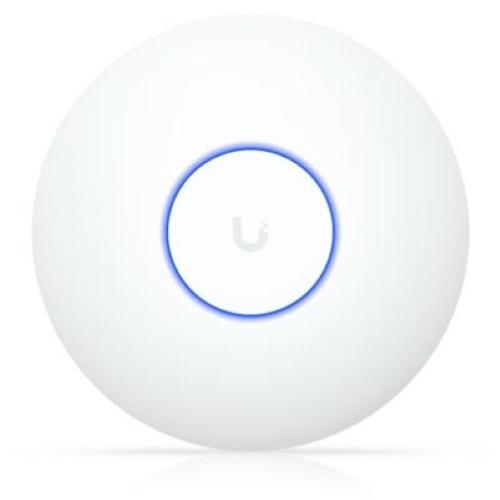

Wireless Access Point UBIQUITI U7-Lite Wi-FI 7 1P 1Gbps RJ45- 688Mbps 2.4GHz (2x2)+4300Mbps 5GHz (4x4)

Overview
Dimensions: Ø171.5 x 33 mm
WiFi Standard: WIFi 7
Spatial Streams: 4
Coverage Area: 115 m² (1,250 ft²)
Max. Client Count: 200+
Uplink: 2.5 GbE
Mounting: Ceiling, Wall (Lite Mount Included)
Power Method: PoE

Performance
MIMO:
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate:
- 5 GHz: 4.3 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
Antenna Gain:
- 5 GHz: 5 dBi
- 2.4 GHz: 4 dBi
Max. TX Power:
- 5 GHz: 24 dBm
- 2.4 GHz: 23 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates:
- 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features
Wireless Meshing: âœ"
Band Steering: âœ"
802.11v BSS Transition Management: âœ"
802.11r Fast Roaming: âœ"
802.11k Radio Resource Management (RRM): âœ"
Advanced Radio Management: âœ"
Passpoint (Hotspot 2.0): âœ"
Captive Hotspot Portal:
- Custom Branding Landing Page: âœ"
- Voucher Authentication: âœ"
- Payment-Based Authentication: âœ"
- External Portal Server Support: âœ"
- Password Authentication: âœ"
- Guest Network Isolation: âœ"
Private Pre-Shared Key (PPSK): âœ"
WiFi Speed Limiting: âœ"
Client Device Isolation: âœ"
WiFi Schedules: âœ"
RADIUS over TLS (RadSec): âœ"
Dynamic RADIUS-assigned VLAN: âœ"

Hardware
Max. Power Consumption: 13W
Supported Voltage Range: 42.5—57V DC
Networking Interface: 1x 2.5 GbE RJ45 port
Weight: 313 g (11 oz)
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate
Mount Material: UV-stabilized polycarbonate, galvanized steel (SGCC)
LEDs: System: White/Blue
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications: CE, FCC, IC
Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing

Software
Application Requirements:
- UniFi Network: Version 9.0.114 and later
- UniFi OS: iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later
