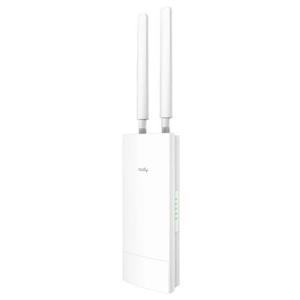

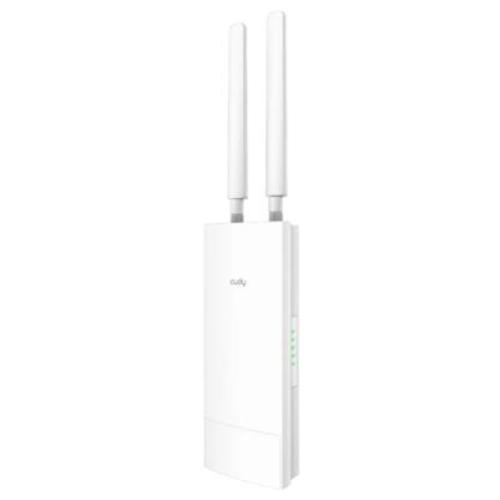

WIRELESS AC1200 ACCESS POINT DUALBAND CUDY AP1300 OUTDOOR 1P GIGABIT RJ45 -802.3AT/802.3AF POE O PASSIVE POE-IP65 -2 ANTENNE

CPU
Chipset: MT7621DAT
CPU Details: 880 MHz Dual-Core CPU

Memory/Storage
Flash/ROM: 16 MB (128 Mbit) NOR
DDR/RAM: 128 MB (1 Gbit) DDR3

Wireless
5 GHz Wi-Fi Speed: 867 Mbps
2.4 GHz Wi-Fi Speed: 300 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 2× Detchable
5 GHz Antenna Gain Max: 4.37 dBi
2.4 GHz Antenna Gain Max: 4.46 dBi
Detachable Wi-Fi Antennas Connector: RP-SMA Female
Beamforming: True
Range Performance:
- Max: 170 m (558 ft)
- Park: 150 m (492 ft)
- Street: 50 m (164 ft)
- Woods: 30 m (98 ft)

Interfaces
Gigabit RJ45 Ports: 1
Ethernet Notes: Accepts PoE powering
LED:
- 5 GHz Wi-Fi
- 2.4 GHz Wi-Fi
- LAN
- Internet
- System
Physical Buttons: Reset Button
Power Input: PoE via Ethernet Port

Power
Power Methods:
- 802.3at/af PoE
- Passive PoE
Passive PoE: 24 ~ 57V
Power Adapter:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 48V Passive PoE
Max Power Consumption (W): 11 W
Idle Power Consumption (W): 7.5 W

Reliability
Advanced: Hardware Watchdog
Lightning/Surge Protection: 4kV
ESD Contact Protection: 4kV
ESD Air Protection: 8kV
Environment:
- Operating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)
- Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
Ingress Protection Rating: IP65 When devices is installed vertically

Certifications
FCC, CE

Mechanical
Installation:
- Wall-mount
- Pole-mount
Dimension:
- Device Body: 240×100×53.7 mm
- Each Antenna: 197.5×21.6×15.5 mm

Package Content
AP1300 Outdoor
Detachable Antennas
PoE Adapter
Power Cord
Mounting Kit
Ethernet Cable
Installation Guide
