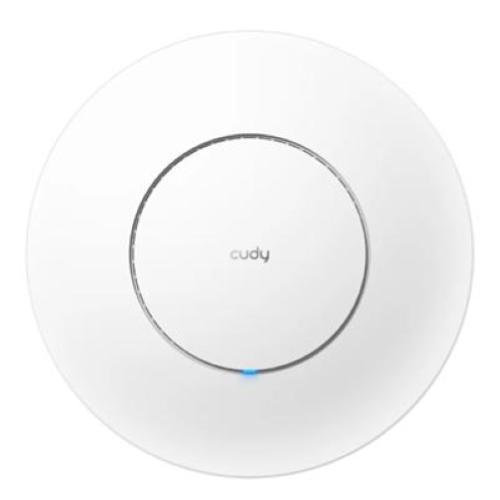

WIRELESS AC1200 ACCESS POINT DUALBAND CUDY AP1300 1P GBE RJ45 -SUPP.12V DC/PASSIVE POE/802.3AF-ANT.INT.

CPU
Chipset: MT7621DAT
CPU Details: 880 MHz Dual-Core CPU

Memory/Storage
Flash/ROM: 16 MB (128 Mbit) NOR
DDR/RAM: 128 MB (1 Gbit) DDR3

Wireless
5 GHz Wi-Fi Speed: 867 Mbps
2.4 GHz Wi-Fi Speed: 300 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4× Internal
5 GHz Antenna Gain Max: 4.64dBi
2.4 GHz Antenna Gain Max: 5.31 dBi
Beamforming: True
Range Performance:
- Max: 170 m (558 ft)
- Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance:
- One wooden walls with thickness < 10 cm (4'')
- One concrete wall with thickness < 20 cm (7'')

Interfaces
Gigabit RJ45 Ports: 1
Ethernet Notes: Accepts PoE powering
LED: System
Physical Buttons: Reset Button
Power Input: DC Jack, PoE via Ethernet Port

Power
Power Methods:
- DC
- Passive PoE
- 802.3at/af PoE
DC: 12V 1A
Passive PoE: 24 ~ 57V
Max Power Consumption (W):
- Max (PoE): 11 W
- Max (DC): 7.5 W
Idle Power Consumption (W): 4.008 W

Reliability
Advanced: Hardware Watchdog
ESD Contact Protection: 4kV
ESD Air Protection: 8kV
Environment:
- Operating Temperature: -10 ℃ ~ 65 ℃ (14 ℉ ~149 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing

Certifications
FCC, CE

Mechanical
Installation:
- Wall-mount
- Ceiling-mount
Dimension: Φ231.9×57.1 mm
Product Weight: 400 g (14.11 oz.)

Package Content
AP1300
Power Adapter
Mounting Kit
Ethernet Cable
Installation Guide
